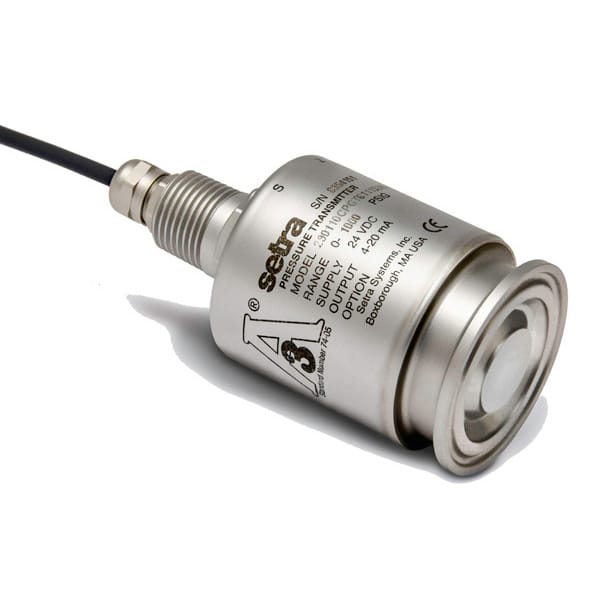

Setra 290 Sanitary Pressure Transducer

Model 290 is Setra’s solution for measuring gauge and composite pressure accuracy in hygienic process applications. Unlike other oil-filled similar products, this model is made of stainless steel and does not require internal liquid media for pressure monitoring. In addition, it is specially designed to eliminate the effects of clamping effects, making installation and maintenance faster and easier than similar products. The compact size, high accuracy (±0.2% FS), wide pressure range, 3A certification, and the ability to withstand online cleaning/sterilization (CIP/SIP) environmental conditions make it ideal for a wide range of applications.

Characteristics

• High precision: ±0.2% FS
• Sturdy non-filled capacitive sensing components
• The clamping effect is negligible and easy to install
• Designed for online cleaning/sterilization (CIP/SIP)
• 1.5″ and 2″ Tri-Clover connectors
• High overvoltage protection
• Not susceptible to thermal shock

Applications

• Food processing
• Dairy and beverage processing
• Pharmaceutical processing
• Level Control
• Sanitary pipeline
