Dwyer Series HFT In-Line Flow Transmitters

SKU: Series HFT Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

The Series HFT In-Line Transmitters provide continuous monitoring of flow rate levels via a direct reading in-line flowmeter with electronics to provide proportional 4 to 20 mA, 0 to 5 and 1 to 5 VDC analog outputs.



Product Applications

  • Waste water processing
  • Lubrication systems
  • Process control
  • Solar systems
  • Drain lines
  • Pump testing
  • Drive data acquisition devices, meters or analog input cards

Service : Compatible gases or liquids.

Wetted Materials : Body: Aluminum, brass or 304 SS; Seals: Buna-N or Fluoroelastomer; Magnet: PTFE coated Alnico; Other internal parts: 304 SS.

Viscosity : 500 SSU.

Temperature Limits : 170°F (76°C).

Pressure Limits : Aluminum body: 600 psig (41 bar); Brass body: 3500 psig (240 bar); 304 SS body: 6000 psig (413 bar).

Power Requirements : 12 to 35 VDC.

Enclosure Rating : NEMA 4X (IP66).

Accuracy : ±2% FS.

Repeatability : ±1% of FS.

Response Time : <100 ms.

Output Signal : 4 to 20 mA; 0 to 5 V; 1 to 5 V.

Shipping Weight : 1/4 to 1/2″ female NPT skus: 3 lb (1.4 kg); 3/4 to 1″ female NPT skus: 4.5 lb (2.0 kg); 1-1/2″ female NPT skus: 12 lb (5.4 kg).

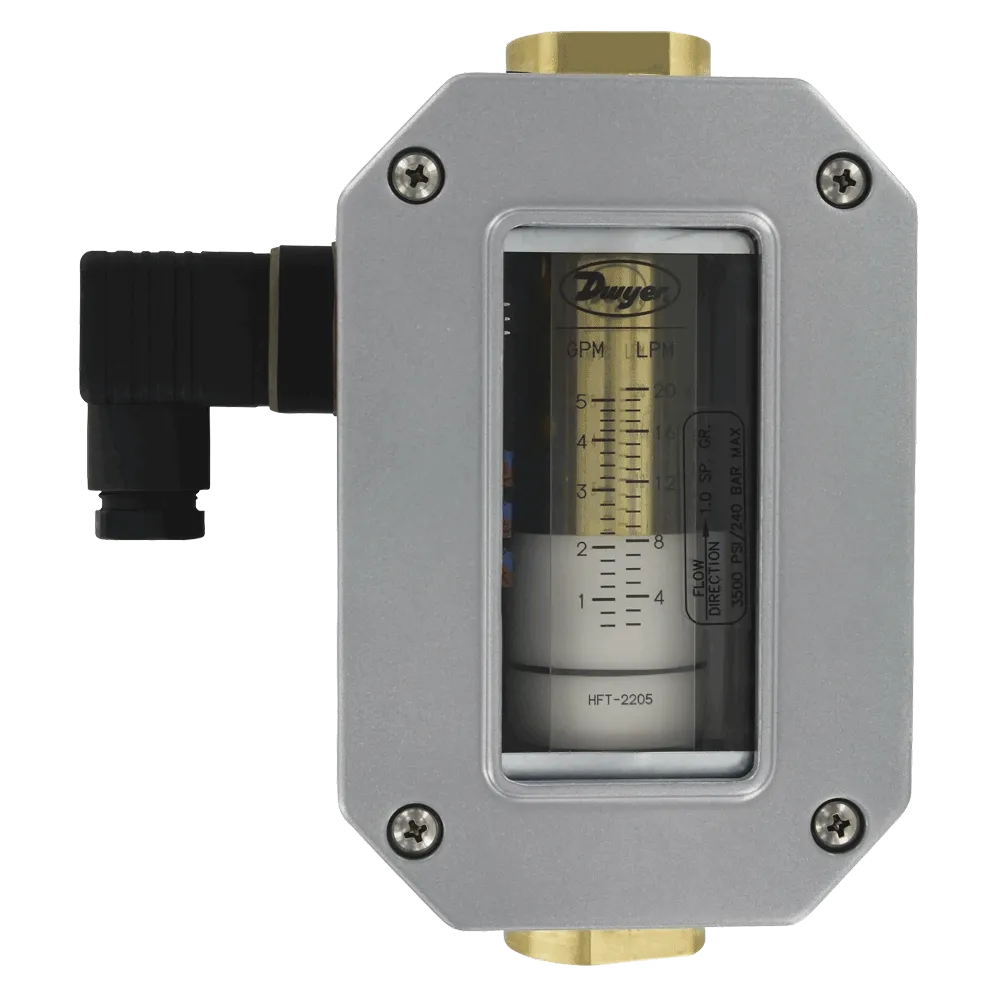

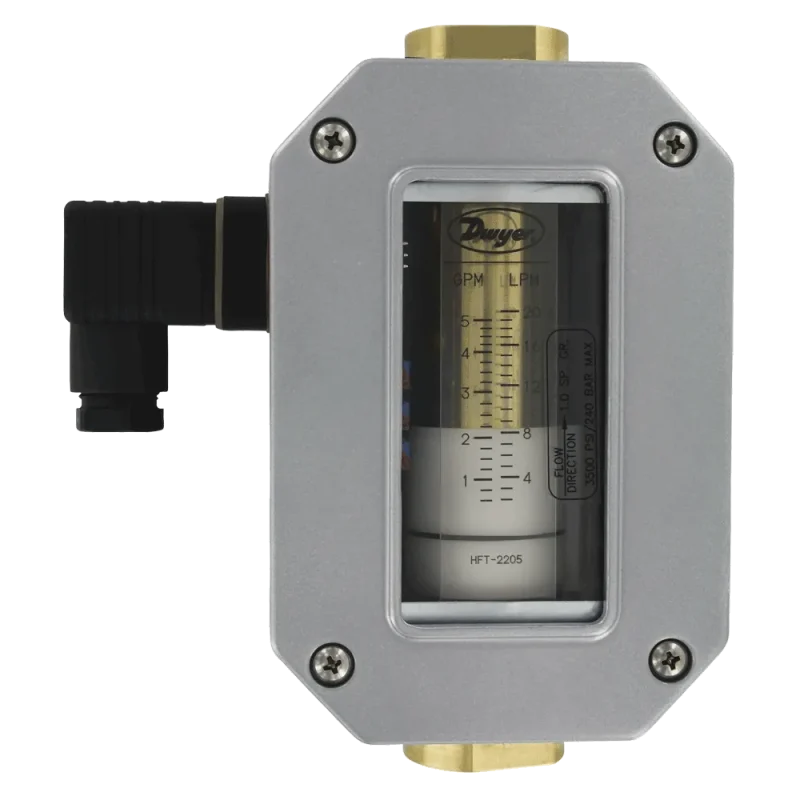

  • Provides analog output to monitor application flow and integral direct reading scale to provide local indication of flow rate
  • Increased application versatility with no inlet or outlet straight plumbing requirement and can be mounted horizontally, vertically, or inverted
  • Outdoor or harsh environment installation capable with rugged cast aluminum construction and NEMA 4X (IP65) enclosure
