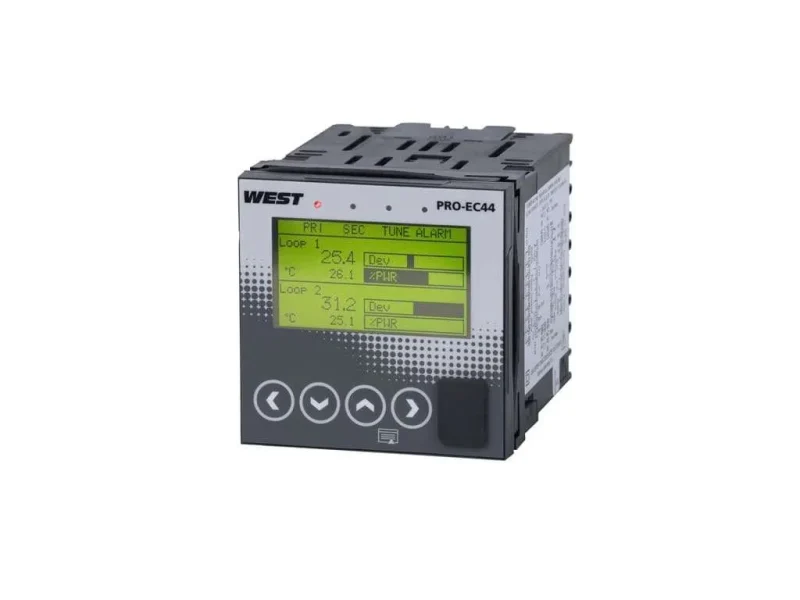

The West Pro-EC44 Dual Temperature Controller is a versatile and advanced controller designed to provide precise temperature control in industrial processes. With its wide range of features and flexible configuration options, it offers comprehensive control solutions for various applications.
Key Features:
1/4 DIN Format: Compact and standardized form factor suitable for various control panel installations.
Single, Two Loop, Cascade, or Ratio Control: Versatile control modes to accommodate different control strategies and process requirements.
Graphical/Text Display: Clear and intuitive display with red/green backlit LCD, providing easy monitoring of process variables and controller status.
Profiler with 255 Segments: Programmable profiler with up to 255 segments shared by up to 64 programs, allowing for precise temperature profile control.
USB Configuration and Data Access: Convenient configuration and data access via USB interface, simplifying setup and data management tasks.
Modbus RS485 or Modbus TCP Ethernet: Industry-standard communication protocols for seamless integration into existing control systems and networks.
Up to 5 PID Sets: Multiple PID sets for flexible control tuning and optimization.
Gain Scheduling: Automatic adjustment of control parameters based on process conditions for improved control performance.
Datalogger with Real-Time Clock: Built-in datalogger with real-time clock for recording and timestamping process data, facilitating analysis and troubleshooting.
Multiple Output Types: Supports various output types including relay, logic/SSR driver, triac, or DC linear mA/VDC, offering compatibility with different actuators and devices.
Multiple Control Types: Single or dual PID control, time-proportioned, continuous, or 3-point stepping, providing flexibility to adapt to diverse control requirements.
Programmable Event Tracks: Each profile can have up to 5 event tracks, enabling complex temperature profile programming and control.
Wide Power Supply Range: Supports a wide range of power supply voltages, accommodating different power system configurations.
Panel Sealing: IP66-rated panel sealing for protection against dust and water ingress, ensuring reliable operation in harsh industrial environments.
Certifications: CE and cULus certifications for compliance with industry standards and regulations.
Software Tools: BlueControl software for configuration and management of the controller, offering user-friendly interface and advanced features.
Specifications:
- Product Category: Single Loop or Two Loop Controller
- Dimensions and Size: 96mm x 96mm x 117mm (HxWxD), 1/4 DIN
- Connectors: Screw terminals
- Primary Input Type: 1 or 2 Universal (TC, RTD, DC linear mA/mV)
- Other Inputs: External remote setpoint, up to 9 digital inputs
- Output Type: Relay, Logic/SSR Driver, Triac, or DC Linear mA/VDC
- Max. Number of Outputs: 9
- Scan Time: 100 ms
- Control Type: Single or Dual PID control, 2-point (on/off)
- Number of Programmer Segments: Up to 255 segments in up to 64 profiles, each with 5 event tracks
- Power Supply:
- 100 to 240VAC +/-10%, 50/60Hz
- 22 to 65VDC, 20 to 48VC 50/60Hz
- Communications: RS 485 (Modbus RTU) / Ethernet (Modbus TCP)
- Panel Sealing: IP66
- Certifications: CE, cULus
- Software Tools: BlueControl
Enhance Temperature Control with West Pro-EC44
Upgrade your temperature control system with the West Pro-EC44 Dual Temperature Controller and benefit from its advanced features, flexibility, and reliability in temperature control applications.
