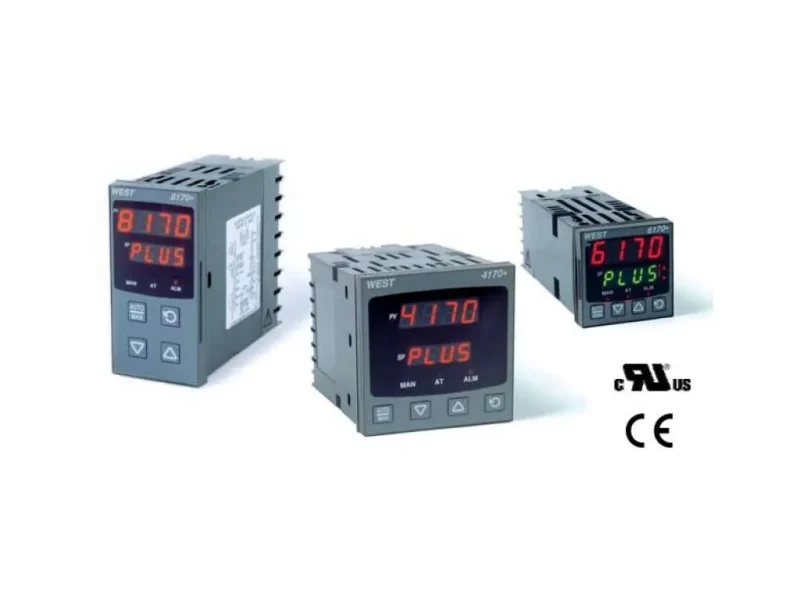

The West 6170+ Temperature Controller with VMD Outputs combines advanced control capabilities with versatile features to deliver precise temperature management in industrial environments. With its compact design and comprehensive functionality, this controller ensures optimal performance and seamless integration into your systems.
Key Features:
- Valve Position Indication: Monitor valve position effortlessly for enhanced control and efficiency.
- Jumperless Configuration: Simplify setup and configuration with jumperless design, reducing installation time and effort.
- Auto or Manual Tuning: Choose between auto or manual tuning options for customized control tailored to your specific requirements.
- Process and Loop Alarms: Stay informed with process and loop alarms for proactive monitoring and maintenance, ensuring uninterrupted operation.
- Remote/Dual Setpoint Options: Benefit from flexible setpoint options, including remote and dual setpoint configurations, for versatile control solutions.
- Dual 4-Digit LED Displays: Monitor temperature and control parameters with clarity using dual 4-digit LED displays, providing easy visibility in any environment.
- Universal Input: Support for universal input types including Thermocouple, RTD, DC linear V, DC linear mA/mV, offering compatibility with a wide range of sensors.
- Up to 4 Outputs: Enjoy flexibility with up to four outputs, including relay, DC linear, SSR driver, Triac, and Transmitter Power Supply, for comprehensive control options.
- Modbus Communications: Communicate seamlessly with Modbus protocol for enhanced connectivity and data exchange, enabling integration with existing systems.
- Program Security: Ensure program security with built-in security features, safeguarding your settings and data from unauthorized access.
Product Specifications:
- Product Category: Single Loop Controller
- Dimensions and Size: 48mm x 48mm x 110mm (HxWxD), 1/16 DIN
- Primary Input Type: Universal (TC, RTD, DC linear V, DC linear mA/mV)
- Other Inputs: 1 digital or 1 Remote setpoint
- Output Type: Relay, DC linear, SSd; Triac, 24V transmitter power supply
- Max. Number of Outputs: 4-5
- Control Type: PID with TPSC (VMD), Manual, Alarm, Ramp to setpoint
- Power Supply:
- 100–240V AC 50–60Hz
- 20-48V AC 50/60Hz
- 22-65 V DC
- Communications: RS-485 serial (Modbus®)
- Panel Sealing: IEC IP66, NEMA4X
- Certifications: CE, UL, ULC, CSA
- Software Tools: Plus Series Configurator
Elevate Your Temperature Control Solutions
Upgrade your temperature control system with the West 6170+ Temperature Controller with VMD Outputs and experience enhanced precision, reliability, and efficiency in your processes.
