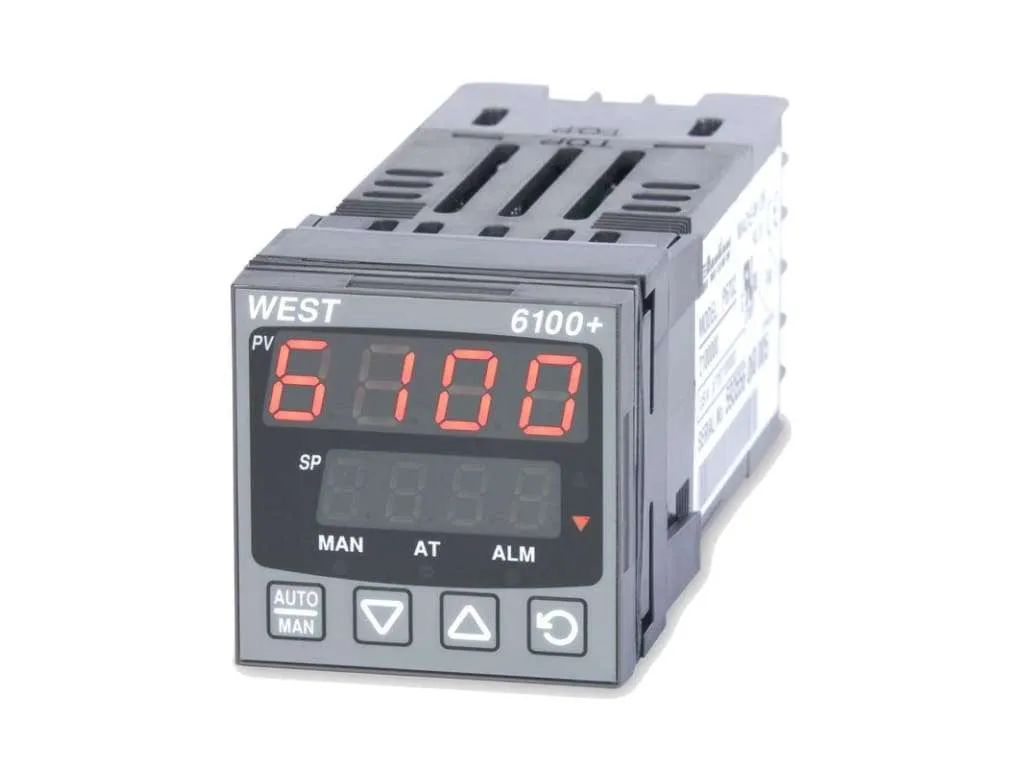

West 6100+ Digital Temperature Controller

SKU: West 6100+ Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

The West 6100+ Digital Temperature Controller offers precise temperature control and advanced features to optimize your industrial processes. With its versatile design and user-friendly interface, this controller ensures efficient operation and enhanced productivity in various applications.

Key Features:

  • Dual Setpoints with Optional Remote Selection: Customize temperature settings with dual setpoints and remote selection options, providing flexibility and adaptability to changing process requirements.
  • Plug-in Output Modules: Install only the necessary functions with plug-in output modules, reducing complexity and optimizing system performance.
  • Expanded User-Selectable Operator Modes: Choose from a variety of operator modes to suit specific applications, enhancing control and customization.
  • User-Selectable Plug-and-Play Output Cards: Easily configure output cards to meet specific control needs, ensuring compatibility and flexibility.
  • Process and Loop Alarms: Stay informed of process deviations with process and loop alarms, enabling prompt response to critical conditions.
  • Adjustable Hysteresis: Fine-tune temperature control with adjustable hysteresis, ensuring precise regulation and stability.
  • Optional Analogue Remote Setpoint Input: Expand control capabilities with optional analogue remote setpoint input, facilitating integration and control flexibility.
  • Optional 10V SSR Driver: Enhance control options with the optional 10V SSR driver, enabling precise control of external devices.
  • Improved Windows PC Configuration Software: Configure and monitor the controller easily with improved Windows PC configuration software, simplifying setup and operation.
  • Improved Easy-to-Use HMI: Enjoy an intuitive and user-friendly interface for effortless operation and monitoring, enhancing productivity and efficiency.
  • Jumperless Input Configuration: Streamline installation and setup with jumperless input configuration, reducing complexity and time.
  • Auto-Hardware Recognition: Automatically detect connected hardware for seamless integration and setup, minimizing errors and downtime.
  • Faster Communication Speeds: Benefit from faster communication speeds, ensuring rapid data exchange and response.
  • More Security Options: Enhance system security with more security options, safeguarding against unauthorized access and ensuring data integrity.
  • Backward Compatible Panel Cut Out, Housing, and Terminal Wiring Capability: Ensure compatibility with existing systems with backward-compatible design features, facilitating easy upgrades and installations.

Product Specifications:

  • Product Category: Single Loop Controller
  • Dimensions and Size: 48mm x 48mm x 110mm (HxWxD), 1/16 DIN
  • Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
  • Other Inputs: Digital, Remote setpoint
  • Output Type: Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply
  • Max. Number of Outputs: 3
  • Control Type: PID, ON/OFF, Manual, Alarm, Ramp to Setpoint
  • Power Supply:
    • 100–240V AC 50–60Hz
    • 20-48V AC 50/60 Hz
    • 22-65V DC
  • Communications: RS-485 serial (West ASCII or MODBUS®)
  • Panel Sealing: IEC IP66, NEMA4X
  • Certifications: CE, UL, ULC, CSA
  • Software Tools: Plus Series Configurator

Optimize Your Temperature Control Processes

Upgrade your temperature control system with the West 6100+ Digital Temperature Controller and experience enhanced precision, flexibility, and efficiency in your industrial operations.

  • Dual setpoints with optional remote selection
  • Plug-in output modules allow installing just the functions needed
  • Expanded user-selectable operator modes
  • User-selectable plug-and-play output cards
  • Process and loop alarms
  • Adjustable hysteresis
  • Optional analogue Remote Setpoint Input
  • Optional 10V SSR driver
  • Improved Windows PC configuration software
  • Improved easy to use HMI
  • Jumperless input configuration
  • Auto-hardware recognition
  • Faster communication speeds
  • More security options
  • Backward compatible panel cut out, housing and terminal wiring capability
Product Category:Single Loop Controller
Dimensions and size:48mm x 48mm x 110mm (HxWxD), 1/16 DIN
Primary Input Type:Universal (TC, RTD, DC linear mA/mV)
Other Inputs:Digital, Remote setpoint
Output Type:Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply
Max. Number of Outputs:3
Control Type:PID, ON/OFF, Manual, Alarm, Ramp to Setpoint
Power Supply:

100–240V AC 50–60Hz

20-48V AC 50/60 Hz

22-65V DC

Communications:RS-485 serial (West ASCII or MODBUS®)
Panel Sealing:IEC IP66, NEMA4X
Certifications:CE, UL, ULC, CSA
Software Tools:Plus Series Configurator

Brochure: BR-PC-2-US-1906-web-1.4
Datasheet:P6100-4100-8103
Manual (Concise): P6100-4100-8104
Manual (Full): 59305-10-West-Plus-Series-Full-Manual-EN
