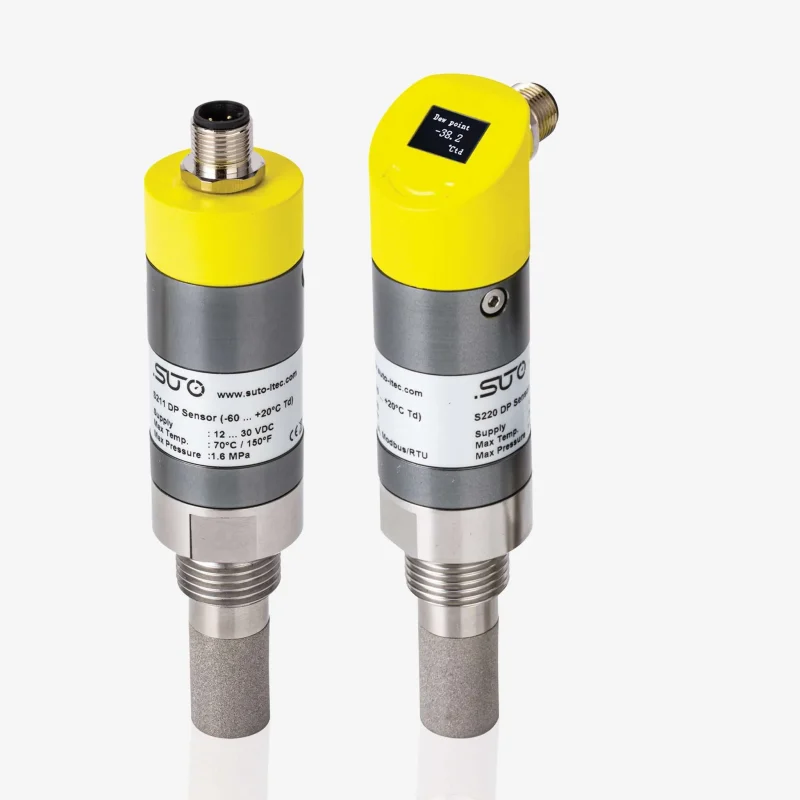

SUTO S215 Dew Point Transmitter, -20 ~ +50 °C Td

SKU: S215 Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

The SUTO S215 Dew Point Transmitter and Sensor provides a dependable solution for measuring dew point in industrial applications, such as refrigerated dryers. It operates within a temperature range of -20 to +50 °C Td and is ideal for monitoring compressed air quality according to ISO 8573-1 standards. The transmitter models offer flexible output options, including 2-wire or 3-wire analog 4-20 mA signals or a Modbus/RTU digital interface, making it easy to integrate into existing processes.

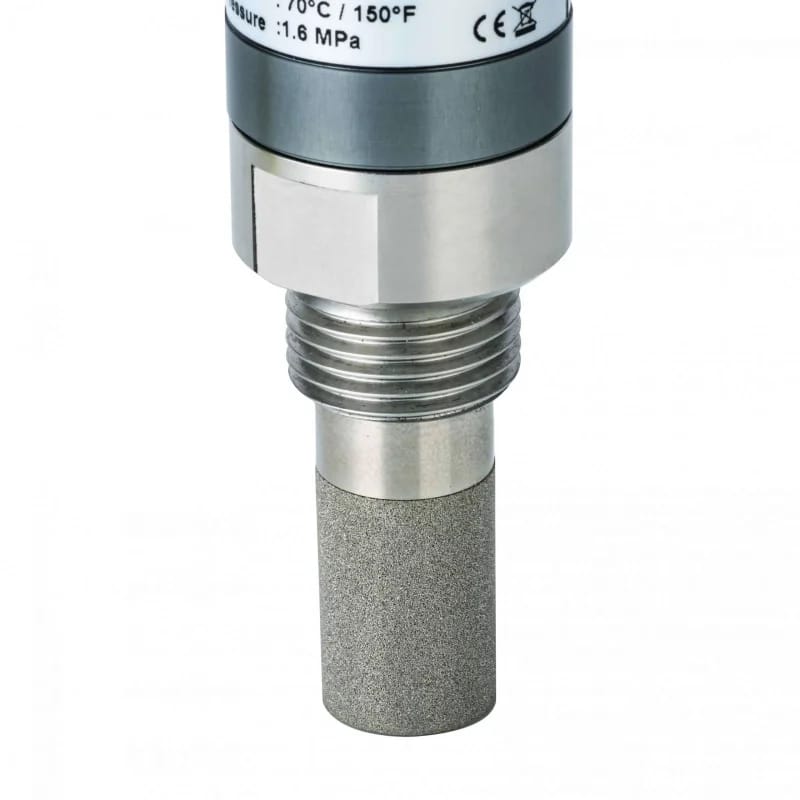

The SUTO S215 Dew Point Sensor includes an integrated pressure sensor, which provides two measurements in one instrument. It also features an optional OLED display that can rotate by 340°, allowing for real-time monitoring on-site. The sensor’s body is made of high-quality aluminum alloy, with a 1.4301 (SUS 304) stainless steel process connection, and its top cover and optional display cover are constructed from durable materials to withstand harsh industrial environments.

This new generation of sensors is a superior version of the well-known SUTO Dew Point Sensor and is fully compatible with existing installations. SUTO offers an Exchange Calibration Service to minimize downtime and ensure a continuous record of dew point measurements. With this service, users can rest assured that their monitoring equipment will remain accurate and reliable over time.

In summary, the SUTO S215 Dew Point Transmitter and Sensor is a reliable solution for measuring dew point in industrial applications. It offers flexible output options, an integrated pressure sensor, and an optional OLED display for real-time monitoring. Additionally, the Exchange Calibration Service from SUTO ensures continuous accuracy and reliability of the sensor over time.

  • For Fridge Dryers with a measurement range of -20 … +50 °C Td.
  • The compact size makes them ideal for dryer installations.

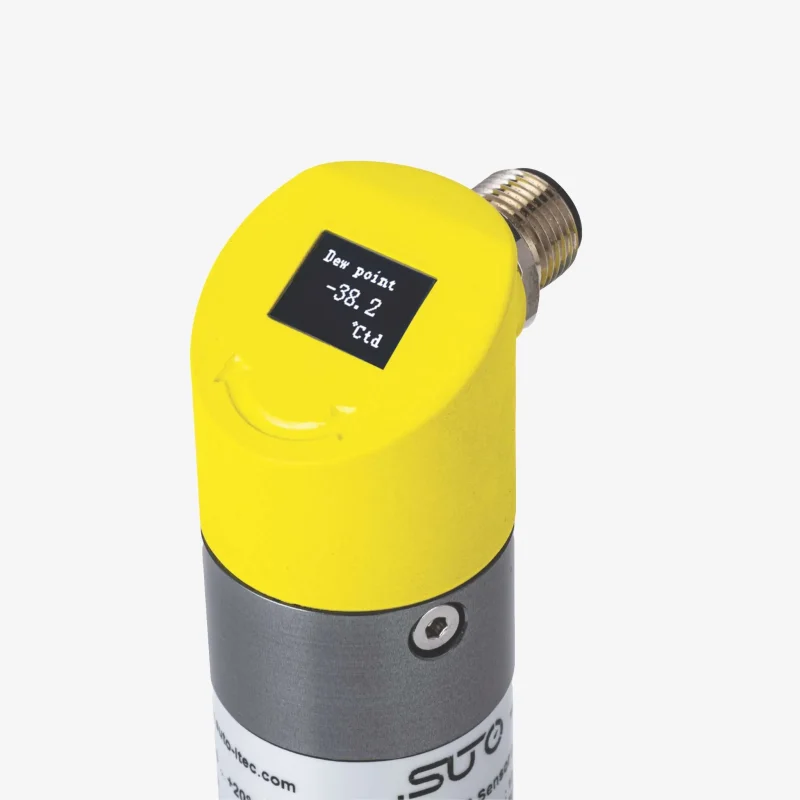

  • Optional display for on-site values.
  • The display can be rotated by 340 ° to fit your needs.
  • User-friendly signal outputs: 2-wire analog 4… 20 mA or 3-wire analog 4…20 mA + Modbus/RTU.
  • IP65 casing provides robust protection.
  • Low maintenance costs due to stable and reliable measurements, which increase calibration intervals.
  • Measured values available in several units: °C Td • g/m3 • mg/m3 • ppmv • g/kg (@ reference pressure) • % RH

Datasheet: Suto iTec S211-S215-S220 Dew Point Transmitter Datasheet
Manual: Suto-iTec-S211-S215-S220 Dew Point Transmitter Manual
