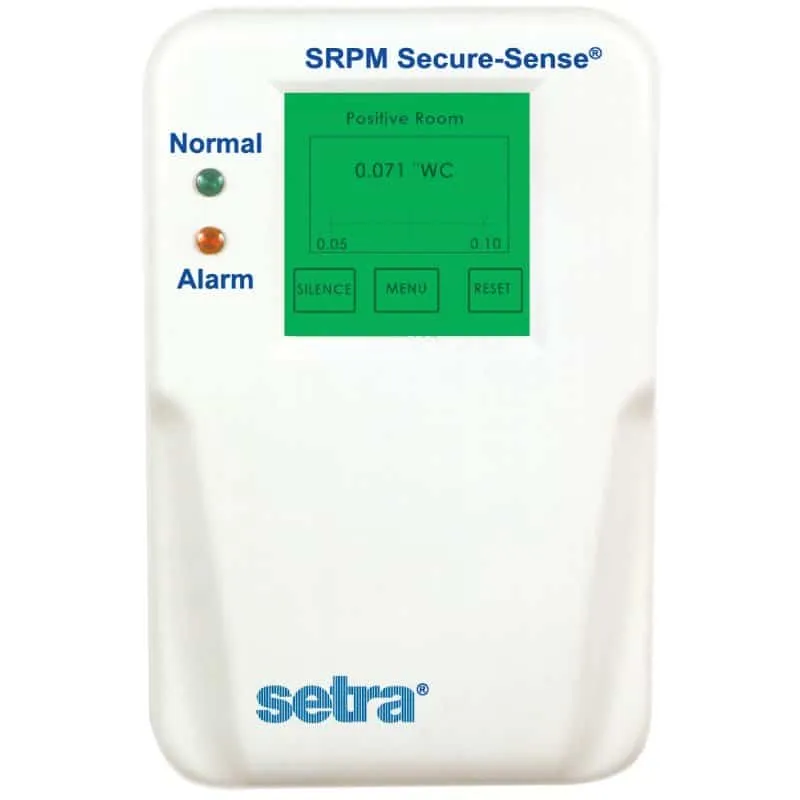

Setra SRPM Room Pressure Monitoring

Setra SRPM Features

  • On-board Sensor – Industry Best Accuracy
  • LCD Touch Screen for Easy Setup and Room Display
  • Monitor Single Pressure Relationship and Door Status
  • Configurable Audible & Visual Alarms to Avoid Nuisance
  • Easy Surface Mounting – Wall Thickness is Irrelevant
  • Increased Safety with 2 Layer Password Protection
  • Calibration: Only Requires Zeroing Once Installed

The SRPM is Setra’s standard single room BACnet, a capable room pressure monitor for measuring low differential pressure in critical applications. The SRPM’s backlit touchscreen LCD provides an intuitive graphical user interface for ease of setup. The SRPM has a built-in calibration feature and only requires zeroing when installed, significantly reducing the cost of ownership. The SRPM monitors and alarms while providing a digital input for a door alarm. The SRPM is a simple, cost-effective solution that combines state-of-the-art electronics with Setra’s superior accurate differential pressure sensing technology to ensure safety in critical environments. The SRPM also incorporates two-level password protection.

Monitor & Alarm Critical Rooms

The SRPM is the most user-friendly room pressure monitor on the market today. It has an intuitive touchscreen interface that allows the user to easily configure alarm set points, passwords, and audible alarming conditions. With its bi-directional sensor, the unit can switch between protection and isolation room modes, or be put into standby mode when the room is not in use.

On-Board Dead-Ended Pressure Sensor

Protection and isolation rooms are designed to adhere to strict standards to provide a proper barrier between the room and reference space. Unlike a flow-through design, the SRPM utilizes an onboard dead-ended low differential pressure sensor. This technology offers the user with a trusted solution & peace of mind that the sensor will prevent contaminated air from passing through it.

Save Time and Money on Installation & Calibration

The Setra SRPM is designed with both the installer and end-user in mind. The BACnet enabled unit can be installed in an off-the-shelf electrical box, improving the ease of installation instead of having to use a custom electrical box that is not typically available at the rough stage of the project. The SRPM offers push-button zero and span calibration that is easily performed by any low differential pressure calibrator and done in minutes.

Application

  • Hospital Isolation Room
  • Pharmaceutical factory
  • Semiconductor factory
  • Clean room
  • Research laboratory
  • Animal Resources Research Center

Data Sheet: Setra Model SRPM Data Sheet
Instruction Manual: Setra Model SRPM Operating Instructions
