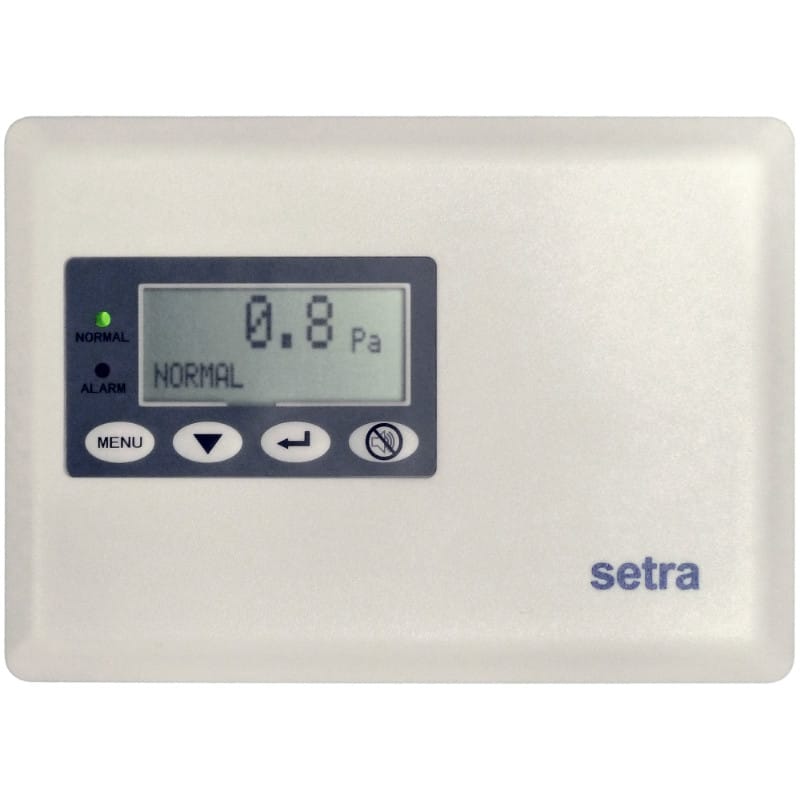

Setra SRIM1 Room Pressure Monitoring

Part Number: Setra SRIM1 Category:

Email Us: sales@celectric.com.my
WhatsApp Us: +60165519084

Setra SRIM1 Features

  • Dead- Ended On-board Sensor – Industry Best Accuracy
  • 2-Line LCD Display for Easy Setup and Room Display
  • Configurable Audible & Visual Alarm to Avoid Nuisance
  • Flush Mount (43mm) and Surface Mount Available
  • Removable Faceplate for No Hassle Calibration
  • Configurable Output (0-5VDC, 0-10VDC, 4-20mA)
  • True 2-Wire 4-20mA Option Available


The Setra SRIM series of isolated room pressure monitors use Setra’s genius dry-capacitor technology. The sensor mold box consists of a stainless steel diaphragm and a fixed electrode to form a variable capacitor. When the pressure changes, the capacitance value changes. New electronic technology converts changes in capacitance into linear DC signals. The transmitter is temperature compensated for improved temperature performance and long-term stability.
All ranges of SRIM can be switched on-site in one-way or two-way pressure range. 4~20mA, 0~5VDC, 0~10VDC can be set on site. The dual-column LCD display allows you to set up your product and monitor real-time status.
SRIM offers both wall and duct installations, making it easy for customers to install applications.

Characteristics

  • User Interface
  • No dust panel installation
  • 316SS stainless steel panel optional
  • 4~20 mA, 0~5 VDC, 0~10 VDC
  • Single/bidirectional output optional on site
  • Digital filtering 1~100 average cycles (values) optional
  • Accuracy: ±1%, ±0.5%, ±025% FS
  • Minimum pressure range: ±12.5 Pa
  • CE, multiple patents

Applications

  • Pharmaceutical factory production workshop
  • Hospital
  • Laboratory
  • Animal and plant room
  • Security password setting function
  • Membrane button operation menu configuration and selection
  • Dual line widescreen LCD display

Local sound and light alarm

  • Green/red bi-color LED power and pressure status indication
  • Pressure upper and lower limit alarm setting
  • Alarm delay / mute time/sound switch settings installation and calibration
  • One-piece panel adsorption installation without fasteners
  • Modular calibration without removing cables and pressure pipes
  • Zero/range button calibration
  • Field optional PG9 and 20mm interface
  • Mounting thickness <40 mm

Success Applications/Case:

  • Battelle Institute
  • Baya Vista Hospital
  • Fort Lauderdale Hospital
  • Harvard Medical School
  • Russell Medical Center

Data Sheet:Setra_sku_SRIM1_data_sheet
Instruction Manual:Setra_sku_SRIM2_Operating_Instructions
