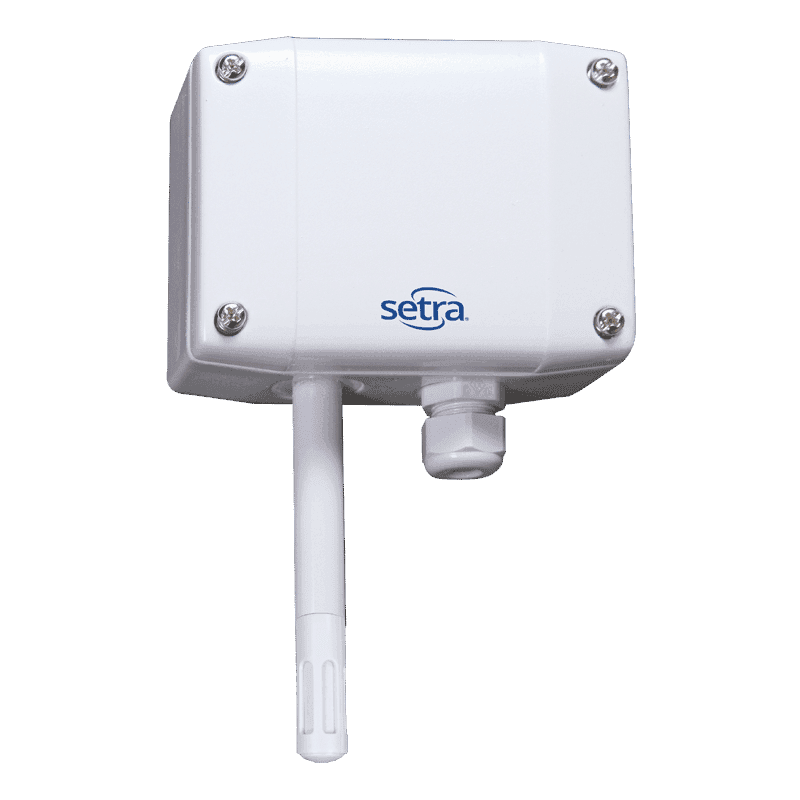

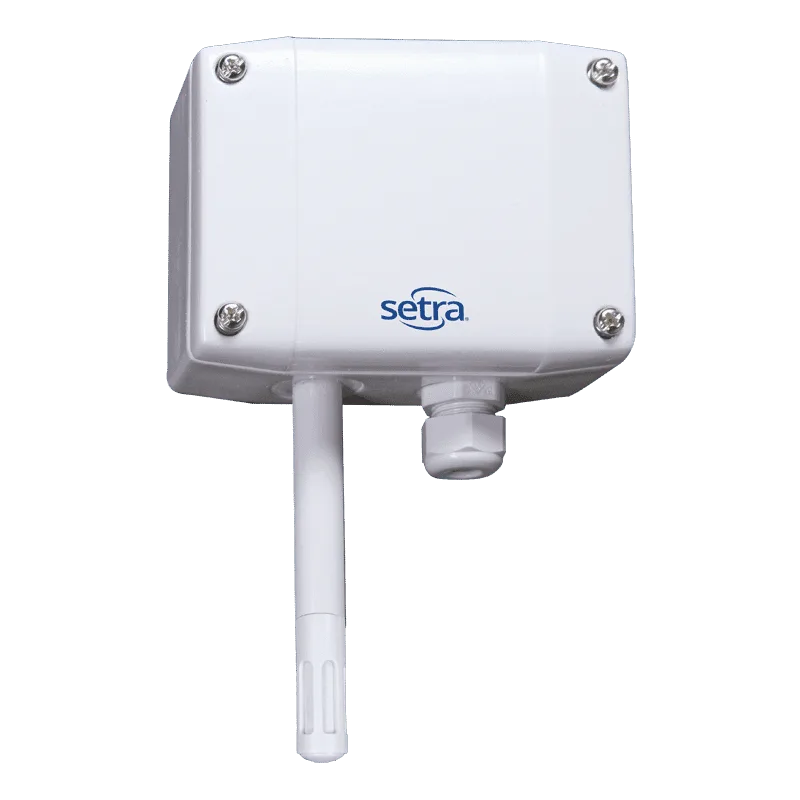

Setra SRH200 Humidity and Temperature Transmitter

SKU: Setra SRH200 Categories: ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Read more

Output: 4 to 20mA
Type: Wall Mount
Sensor Ports: One
Probe Length: Fixed
Filter Type: Membrane Filter
Units: Metric
Baud Rate: Analog Unit
Parity: Analog Unit
Stop Bits: Analog Unit

Read more

Output: 0 to 10V
Type: Wall Mount
Sensor Ports: One
Probe Length: Fixed
Filter Type: Membrane Filter
Units: Metric
Baud Rate: Analog Unit
Parity: Analog Unit
Stop Bits: Analog Unit

Read more

Output: 0 to 10V
Type: Duct Mount
Sensor Ports: One
Probe Length: Fixed
Filter Type: Membrane Filter
Units: Metric
Baud Rate: Analog Unit
Parity: Analog Unit
Stop Bits: Analog Unit

Read more

Output: 0 to 10V
Type: Duct Mount
Sensor Ports: One
Probe Length: Fixed
Filter Type: Membrane Filter
Units: Non-Metric
Baud Rate: Analog Unit
Parity: Analog Unit
Stop Bits: Analog Unit

Read more

Output: MODBUS
Type: Wall Mount
Sensor Ports: One
Probe Length: Fixed
Filter Type: Membrane Filter
Units: Metric
Baud Rate: Please specify
Parity: Please specify
Stop Bits: Please specify

Read more

Output: BACnet
Type: Wall Mount
Sensor Ports: One
Probe Length: Fixed
Filter Type: Membrane Filter
Units: Metric
Baud Rate: Please specify
Parity: BACnet Unit
Stop Bits: BACnet Unit

Specially designed for HVAC, the SRH200 sensor by Setra is a cost-effective, highly accurate and reliable solution for measuring relative air humidity and temperature.

Proprietary sensing element

The SRH200 employs a capacitive sensing element which exhibits excellent long term stability and resistance
against pollutants. The SRH200 provides measurement accuracy of ±2.5 % RH and is available for wall or duct mounting with current, voltage, BACnet MS/TP or Modbus RTU output.

Hassle-free configuration

Optional configuration accessories (SETRAPCA1 and SETRAPCA2), and user-friendly software makes it possible to readily set RS485 interface parameters, customize the output scaling, and perform one or two-point adjustment of RH and temperature on any SRH200 unit.

Product design

The SRH200’s form factor and thoughtful design allow for a simple and efficient installation. The quarter-turn bayonet
screws and the easily accessible electrical connections enable a hassle-free setup, greatly reducing installation cost.
The IP65/NEMA 4 faceplate also provides incredible protection against contaminants and condensation, prolonging the products life and ensuring reliable operation.

Setra SRH200 Humidity and Temperature Transmitter Features

  • Excellent long-term stability
  • BACnet MS/TP and Modbus RTU compatible
  • Sensor coating protects the sensing element and enables long term stability
  • Wall and duct mount options available

Data Sheet: sku SRH200 Data Sheet
Instruction Manual: sku SRH200 Operating Instructions
