Last Updates: 17/08/2020
Brands:Setra

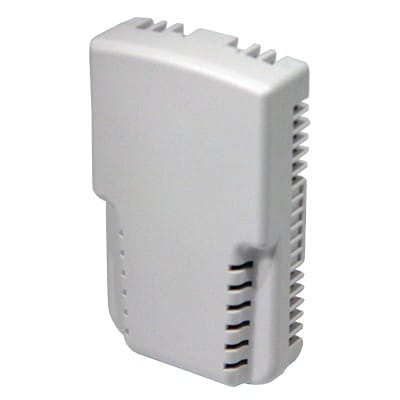

Setra SRH Wall Mount Humidity Transmitter

Part Number: Setra SRH Categories: ,
  • Email Us: sales@celectric.com.my
  • WhatsApp Us: +60165519084
  • Setra SRH Features

    • Active Temperature With Jumper Selectable
    • Excellent Reliability Through ASIC Technology
    • Robust Capacitive Sensor Design
    • Low Cost of Ownership
    • ±2%, ±3% and ±5% FS Accuracy
    • Replaceable Sensor Tip
    • Quick Mount, 2 Screw Install With Plug-In Terminal Wiring
    • 5 Year Warranty on Electronics
    • 2 Year Warranty on Sensor Module
    • CE and RoHS Compliant

    The Setra SRH Thin Wall Mount Temperature and Humidity Transmitter measures humidity and temperature simultaneously with a wide selection of accuracies, temperatures, and outputs. It features a detachable probe that can be traced back to NIST and an extremely rugged capacitive sensor that achieves 0 to 99% relative humidity full-scale measurements and is capable of recovering from 100% saturation. The SRH Series offers 3%, 3%, and 5% accuracy levels for more demanding HVAC applications. Product options include passive temperature output (RTD thermistor) or active temperature output (analog), one device for two measurements.

    Replaceable sensing probe for easy calibration

    SRH offers sensor probes that are easier to replace in the industry and can be easily removed without any professional training. Each sensing module is calibrated prior to shipment, eliminating the need for any subsequent calibration operations, reducing downtime caused by maintenance.

    Both active and passive temperature outputs are available

    The SRH provides a passive temperature output (RTD thermistor) or an active temperature output (analog) for two measurements in one device. The active output type can be selected from 40oC, 50oC or 60oC temperature range by jumper.

    Applications

    • HVAC/R control
    • Indoor Air Quality (IAQ)
    • Laboratory
    • Cultural relic protection
    • Clean electronics factory

    Data Sheet: Setra Model SRH Wall Data Sheet
    Instruction Manual:Setra_Model_SRH_Wall_Operating_Instructions
