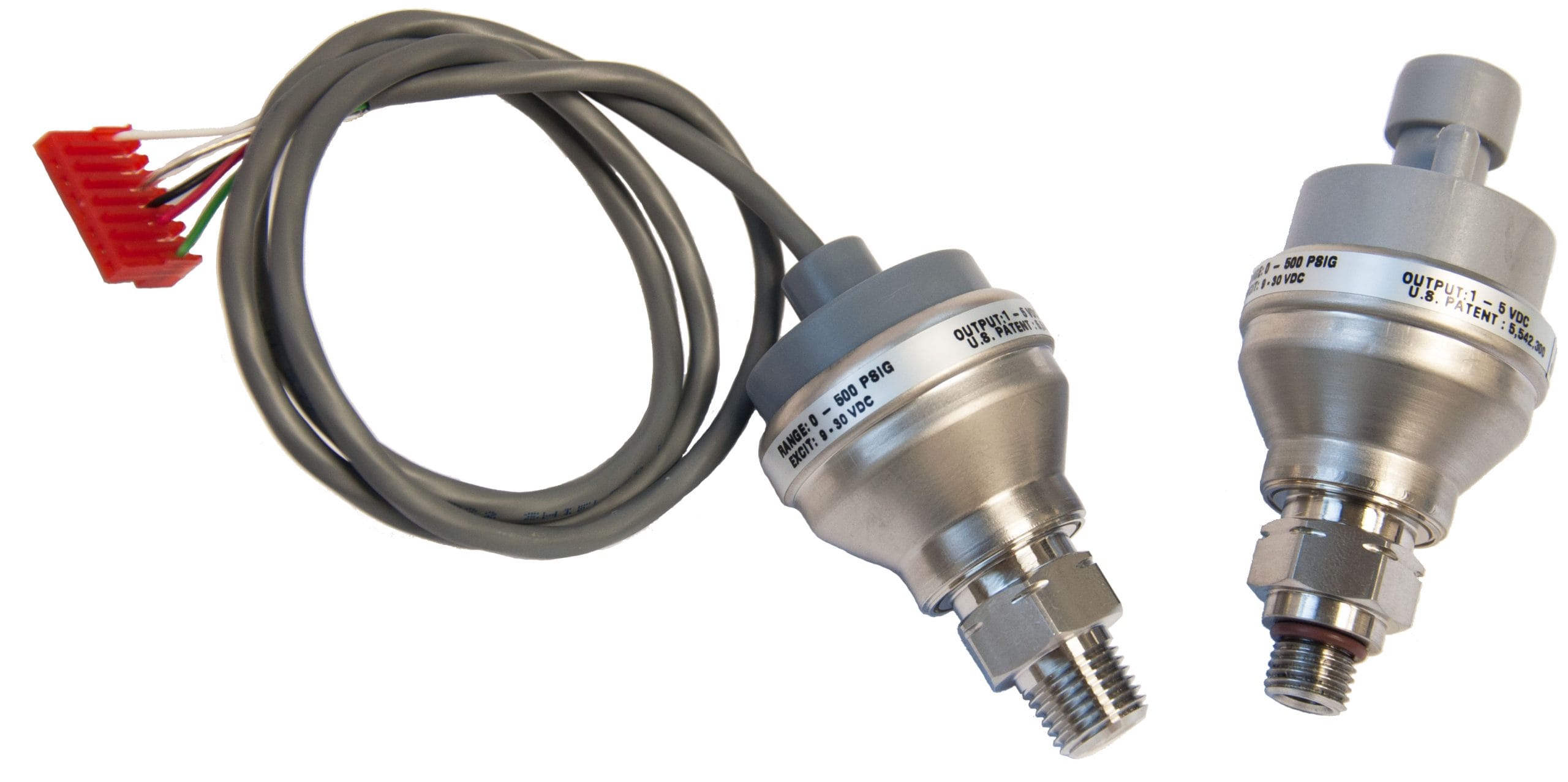

Name: Setra 209H Stainless Steel Pressure Transducer [OBSOLETE]
Brand: Setra Systems
SKU: 209H
Availability: InStock

The Setra 209H is a 316L stainless steel pressure transducer, built for harsh and corrosive environments in new energy and industrial applications, such as fuel cells, CNG and LNG systems, hydrogen production, water and sewage systems, and gas pipelines. Note that this model is listed as obsolete by Setra; we are keeping the listing here for reference and for customers who already have it specified, but we would recommend checking with us on a current replacement before ordering.

All wetted parts are 316L stainless steel with no seals, O-rings, or brazed joints, and it uses a non-oil-filled capacitive sensor design, so there is no risk of oil leakage or contamination the way there can be with older oil-filled sensors. A patented overpressure stop lets it recover from overpressure up to 4 times the rated range. Accuracy is ±0.25% FS, with output of 4-20mA (2-wire) or 0.5-5.5VDC/0.2-5.2VDC (3-wire), running on 9-30VDC unregulated power. Pressure ranges run from 0-15 PSI to 0-1,000 PSI across seven standard ranges.

From our experience, this was specified for demanding retrofit and OEM applications where a wide choice of pressure and electrical connectors mattered. Before we quote anything using this reference, we would normally check current stock and confirm the recommended replacement model with you first. Hope this helps.

Function	Stainless steel pressure transducer (discontinued/obsolete model – reference only)
Pressure Range	0-15 PSI to 0-1,000 PSI (7 standard ranges)
Accuracy	±0.25% FS; ±0.16% FS non-linearity; ±0.19% FS hysteresis
Output Signal	4-20mA (2-wire, 250Ω load); 0.5-5.5VDC or 0.2-5.2VDC (3-wire)
Power/Excitation	9-30VDC unregulated
Operating Temperature Range	-40°F to +185°F
Compensated Temperature Range	-4°F to +176°F
Thermal Effect	Zero shift ±0.03% FS/°F; span shift ±0.015% FS/°F
Overpressure Protection	Patented overpressure stop, recovers up to 4x rated range (e.g. 100 PSI model: standard burst 750 PSI, high-pressure option burst 4,000 PSI)
Construction	316L stainless steel wetted parts; non-oil-filled capacitive design; no seals or O-rings
Shock / Vibration	200g shock; 10g max. acceleration; 20g vibration
Response Time / Stability	5 milliseconds response; 0.5% FS/year long-term stability
Note	Specifications sourced from Setra’s preliminary 2016 spec sheet; model is listed as obsolete by the manufacturer
