Wireless signal repeaters are used to retransmit wireless signals when connectivity is an issue. They are incredibly simple to install as they only require power and a network ID. Any units in range of the repeater with the same network ID will retransmit through it, thus increasing signal strength. Use repeaters to broadcast over very long distances or around permanent obstacles.

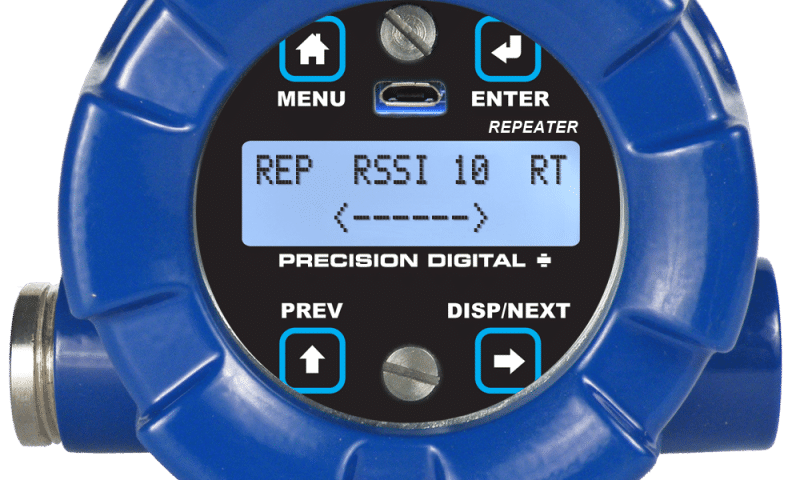

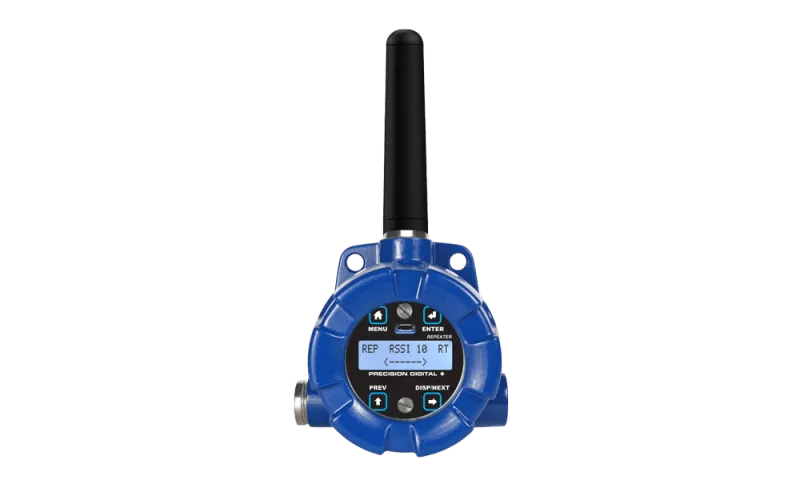

Precision Digital PDW30 & PDW90 Wireless Repeater
- Retransmits Wireless Signals
- Broadcasts Long Distances and Around Obstacles
- Flanges for Wall or Pipe Mounting
- NEMA 4X, IP68 Cast Aluminum Enclosure
General
Display | 32-character dual-line alphanumeric dot matrix LCD display with backlight |
Display Orientation | Display may be mounted at 180° from default orientation |
Network ID | Field selectable: 0 – 99 |
Programming Methods | Four programming buttons (behind glass) or PC with PDW Manager software. |
Recalibration | All inputs and outputs are calibrated at the factory. Recalibration is recommended at least every 12 months. |
Process/ Digital I/O | Press the display button once to display the present analog input and output, press the display button again to display digital I/O states. |
Password | A programmable password restricts modification of programmed settings. |
Power | 12-28 VDC, 5 W max |
Non-Volatile Memory | All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost. |
Isolation | 500 V |
Environmental | Operating temperature range: -40 to 65°C (display inoperable < -20 °C); Storage temperature range: -40 to 85°C; Relative humidity: 0 to 90% non-condensing |
Connections | Removable screw terminal blocks accept 16 to 30 AWG wire. |
Enclosure | Cast aluminum with glass window, 0.30% max copper content, corrosion resistant powder coating, color: blue. NEMA 4X/IP68. Two ½” NPT threaded conduit openings. One ½” NPT stainless steel conduit plug with 10 mm hex key fitting installed. |
Mounting | May be mounted directly to conduit. Two mounting holes for 1.5″ pipe or wall mounting. See Mounting Dimensions on page 15 for mounting space requirements. |
Tightening Torque | 2.5 lb-in (0.28 Nm) |
Shipping Dimensions | 17″ x 14″ x 9″ (43.2 cm x 35.6 cm x 22.9 cm) (L x W X H) |
Shipping Weight | 5 lbs. (2.27 kg) |
Warranty | 3 years parts & labor |
Wireless Radio
Frequency | 900 MHz |
Range | 500 ft (152.4 m) indoor, 1 mi (1.61 km) outdoor (line-of-sight) |
Encryption | AES 128-bit encryption available using PDW Manager software |
Interference Reduction | Frequency Hopping Spread Spectrum (FHSS) |
Power Output | 24 dBm (250 mW) |
Sensitivity | -101 dBm |
PDW Manager Software
System Requirements | Microsoft® Windows® XP/Vista/7/8/10 |
Communications | USB 2.0 (Standard USB A to Micro USB B) |
Configuration | Configure devices one at a time |
Mounting Dimensions
Instruction Manual: LIMW30R Instruction Manuals
