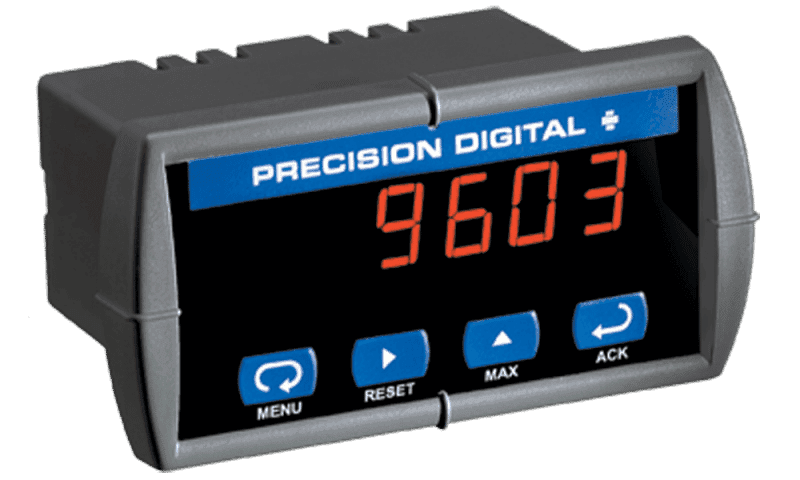

Precision Digital PD603 Sabre P Low-Cost Process Digital Panel Meter

From: $242

Part Number: PD603 Categories: , Tag:
