  • Bandwidth: 60MHz
  • Sample rate : 500MS/s
  • Horizontal Scale (s/div): 5ns/div～100s/div, step by 1~2~5

Available on backorder

Read more

  • Bandwidth: 70MHz
  • Sample rate : 1GS/s
  • Horizontal Scale (s/div):  2ns/div～100s/div, step by 1~2~5
  •

Available on backorder

Read more

  • Bandwidth: 100MHz
  • Sample rate : 1GS/s
  • Horizontal Scale (s/div):  2ns/div～100s/div, step by 1~2~5

Available on backorder

Read more

  • Bandwidth: 100MHz
  • Sample rate : 2GS/s
  • Horizontal Scale (s/div):  2ns/div～100s/div, step by 1~2~5

Available on backorder

Read more

  • Bandwidth: 200MHz
  • Sample rate : 2GS/s
  • Horizontal Scale (s/div):  1ns/div～100s/div, step by 1~2~5

Available on backorder

Read more

  • Bandwidth: 300MHz
  • Sample rate : 2.5GS/s
  • Horizontal Scale (s/div):  1ns/div～100s/div, step by 1~2~5

Available on backorder

Read more

  • Bandwidth: 300MHz
  • Sample rate : 3.2GS/s
  • Horizontal Scale (s/div):  1ns/div～100s/div, step by 1~2~5

Available on backorder

  • Bandwidth : 60MHz – 300MHz
  • Sample rate : 500MS/s – 3.2GS/s
  • 10M record length for each channel
  • Multi-function : auto-scale, Pass / Fail, and current-measuring
  • LAN remote control
  • Supported SCPI and LabVIEW

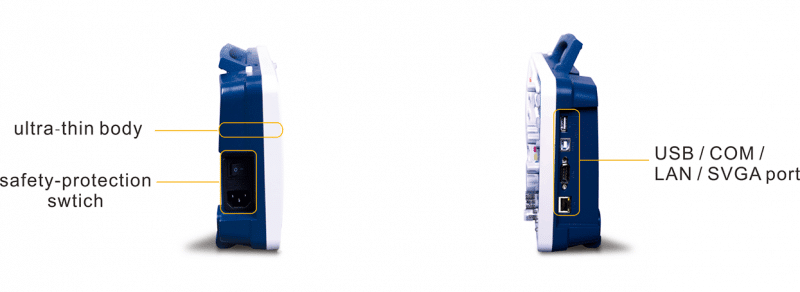

  • Smart design with easy portability
  • Large 8 inch 800 x 600 pixels display
  • Optional battery available

OWON SmartDS Series Digital Oscilloscope

  1. 10M Record length

SDS series employ 10Mpts record length, waveform detail is easy to track. Keep the maximum sample rate at longer period, capture every waveform change.

10M Record length

  1. Auto-scale function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

Auto-scale function

  1. Waveform Record/Play

SDS series waveform record/play function support 2-channel waveform record. Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replays to analyzer the detail.

Waveform Record/Play

  1. SVGA Function

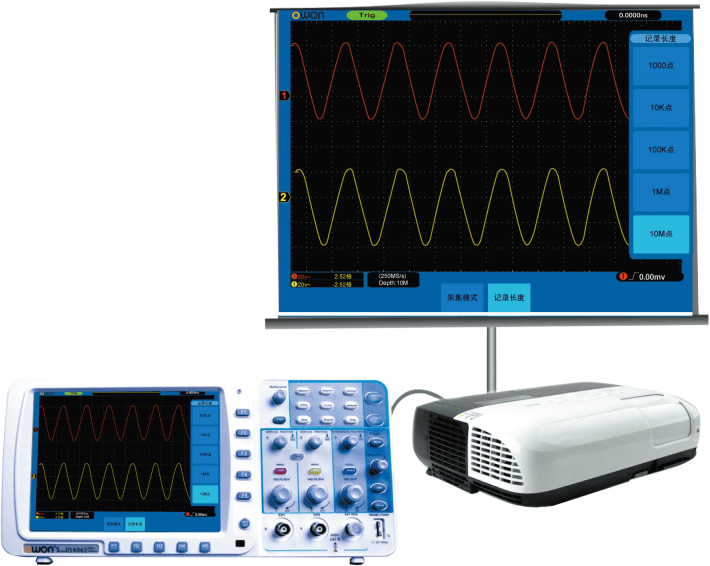

SDS oscilloscope provide 800 x 600 SVGA port. Oscilloscope content can display on external monitor or projector in this way. It helps with production line monitoring, meeting discuss and course display.

SVGA Function

  1. Battery Function

Optional large volume battery, supports floating measurement. Convenient to carry.

Battery Function

ModelSDS6062SDS7072SDS7102SDS8102SDS7202SDS8202SDS8302SDS9302
 Bandwidth60MHz70MHz100MHz200MHz300MHz
 Sample Rate500MS/s1GS/s2GS/s1GS/s2GS/s2.5GS/s3.2GS/s
 Horizontal Scale (s/div) 5ns/div～100s/div,
step by 1~2~5		 2ns/div～100s/div,
step by 1~2~5		 1ns/div～100s/div, step by 1~2~5
 Display 8”color LCD, 800 x 600 pixels
 Channel 2 + 1 (external)
 Record Length 10M
 Vertical Resolution (A/D) 8 bits (2 channels simultaneously)
 Vertical Sensitivity 2mV/div~10V/div
 Trigger Type Edge, Pulse, Video, Slope, and Alternate
 Communication Interface USB host, USB device, Pass / Fail, LAN, VGA (optional), or RS232 (optional)
 Battery (optional) 7.4V, 8000mA
 Dimension (W × H × D) 340 × 155 × 70 (mm)
 Weight (without package) 1.80 kg
