OWON SDS-E Series Digital Oscilloscope

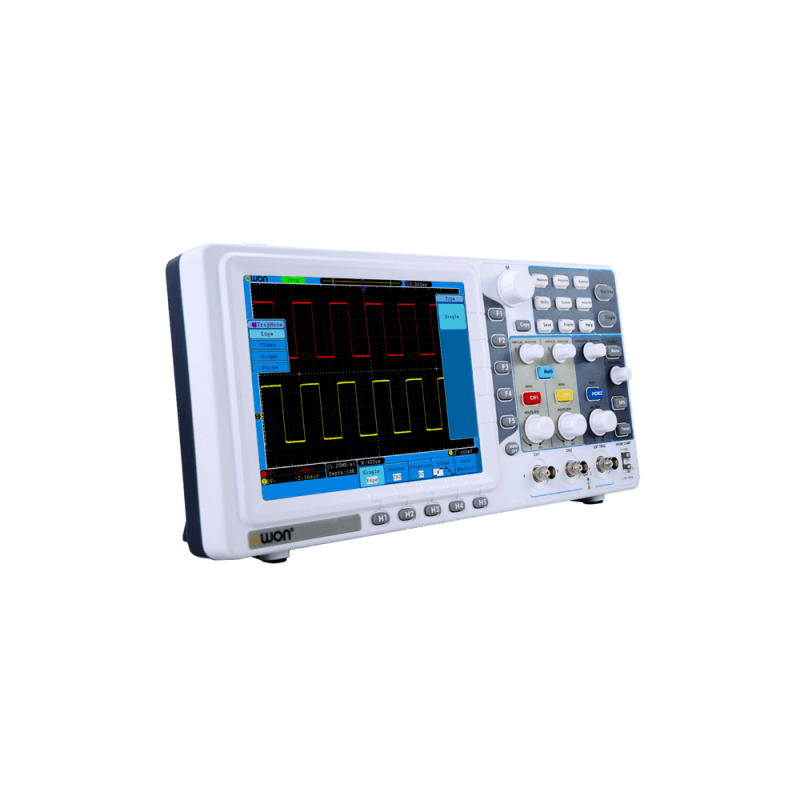

OWON SDS-E Series Digital Oscilloscope Front
OWON SDS-E Series Digital Oscilloscope Front

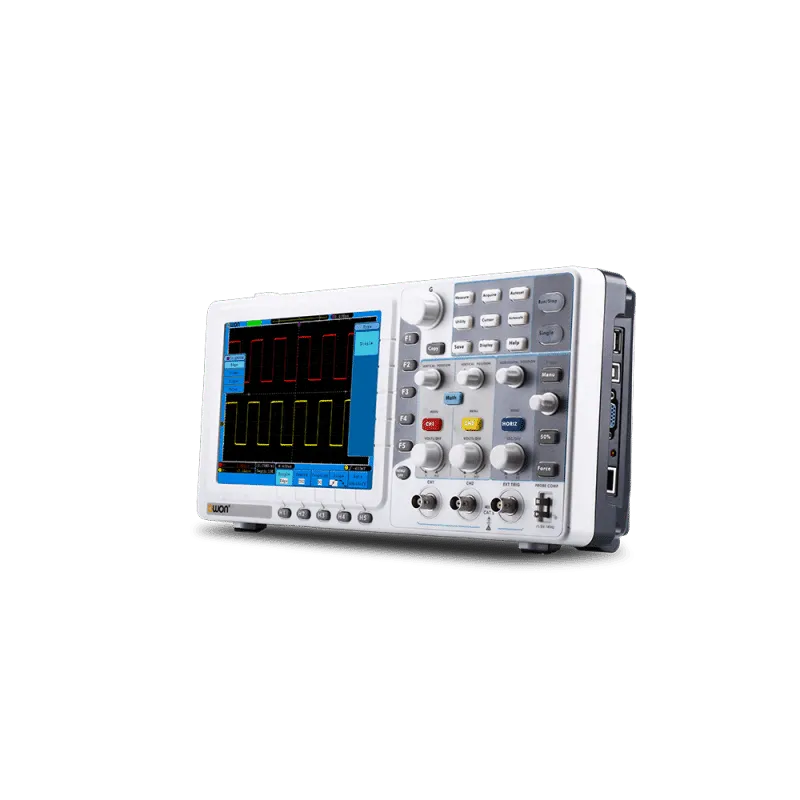

OWON SDS-E Series Digital Oscilloscope Right
OWON SDS-E Series Digital Oscilloscope Port

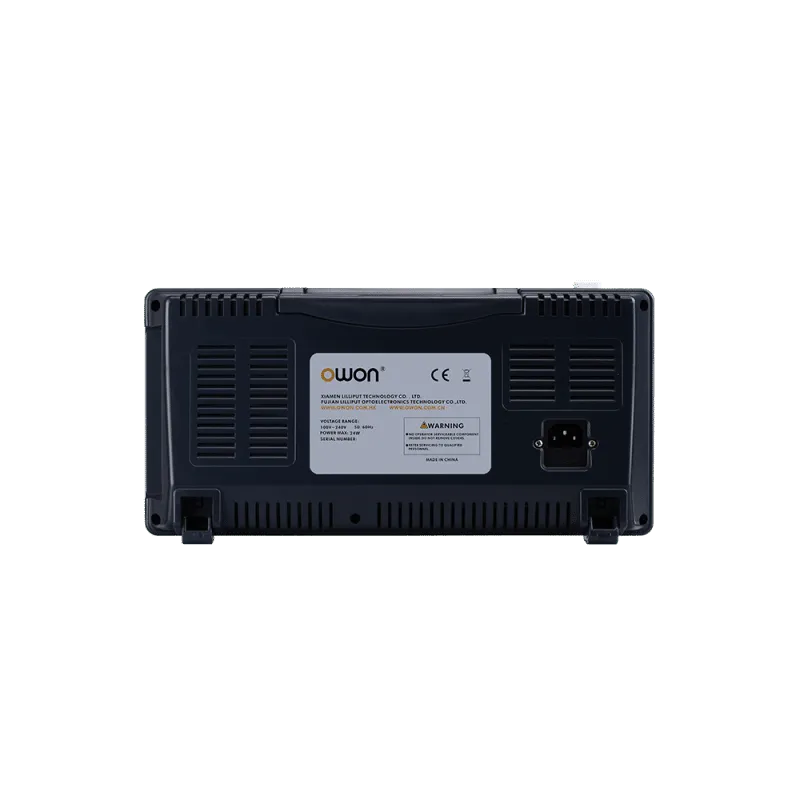

OWON SDS-E Series Digital Oscilloscope Back

OWON SDS5032E

SKU: SDS5032E Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

  • Bandwidth : 30MHz
  • Sample rate : 500MS/s
  • Horizontal Scale (s/div): 5ns/div～100s/div, step by 1~2~5
  • Channel: 2 + 1 (external)
  • Record Length: 10K
  • Vertical Sensitivity: 5mV/div～5V/div (at input)
  1. 8 inches large display

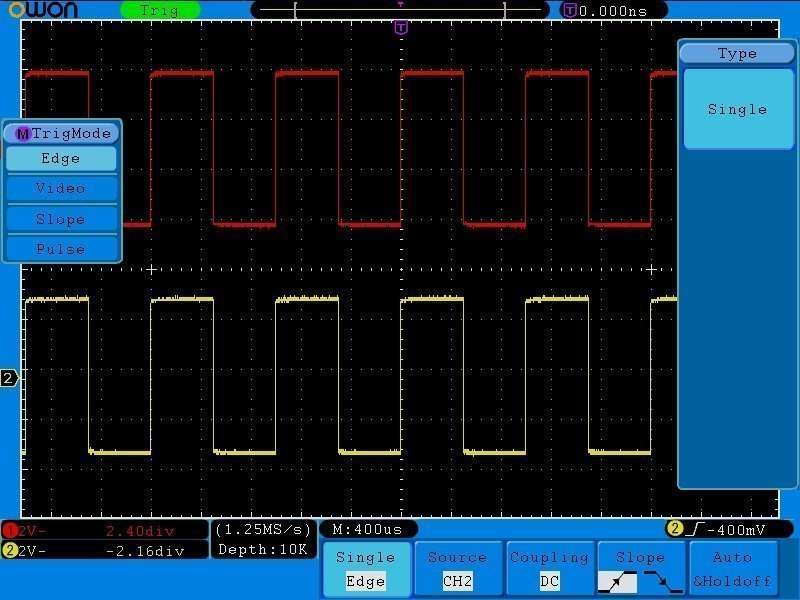

8 inches  (800 x 600) TFT high-resolution LCD display much detail. Horizontal 15 divisions and vertical 10 divisions, perfect than the same level product.

  large display



  1. Auto-scale function

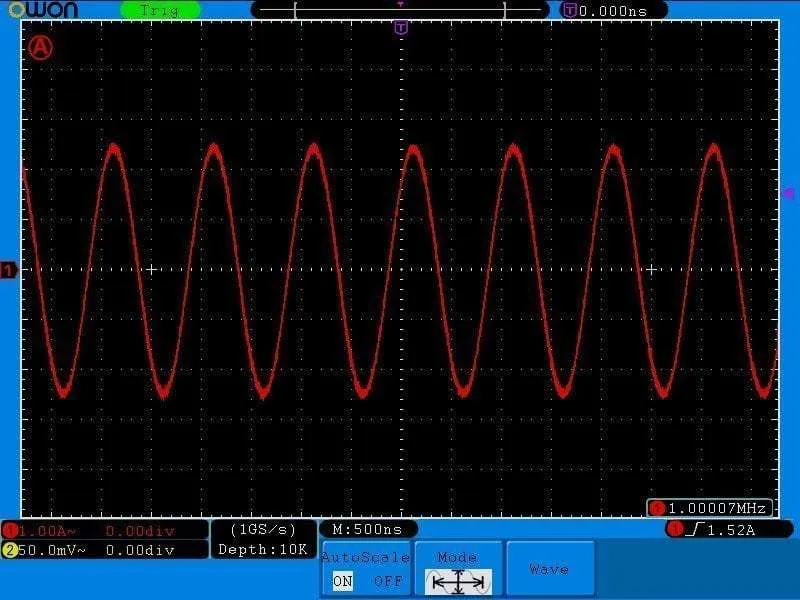

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

Auto-scale function

  1. Pass/Fail function

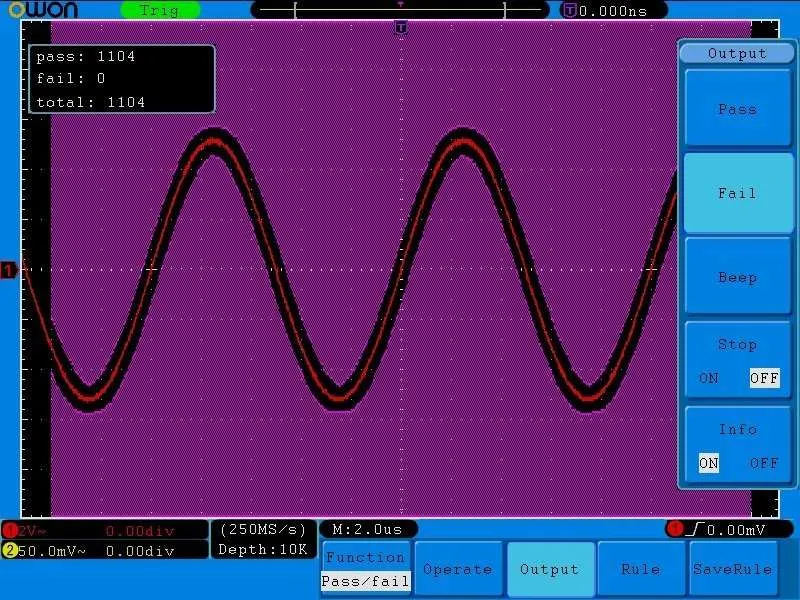

Pass/Fail function can compare the template signal edit by user (horizontal and vertical occupation) with input signal. Meet the requirement for long-term signal monitor, production monitor, filter and control.

Pass Fail function

  1. Waveform Record/Play

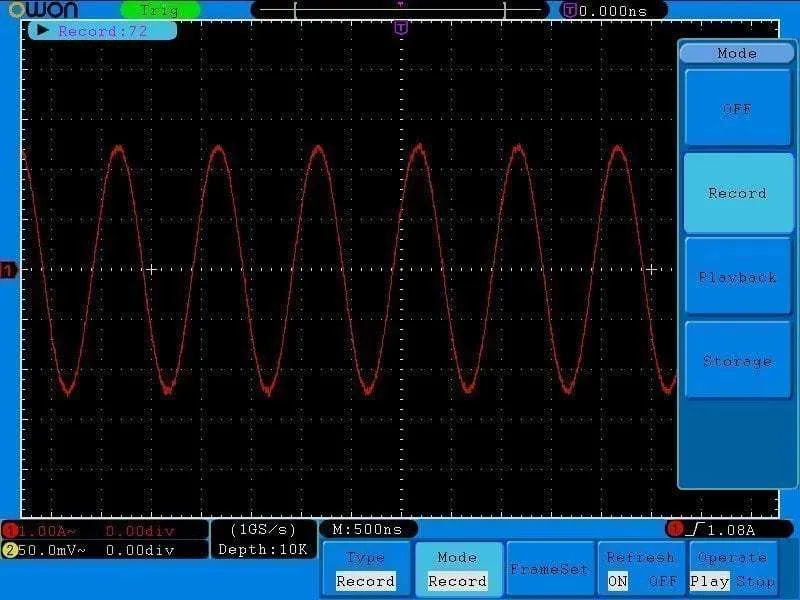

SDS series waveform record/play function support 2-channel waveform record. Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replays to analyzer the detail.

Waveform Record Play

skuSDS5032E
 Bandwidth30MHz
 Sample Rate (real time)500MS/s
 Horizontal Scale (s/div)5ns/div～100s/div, step by 1~2~5
 Channel2 + 1 (external)
 Display8″ color LCD, 800 × 600 pixels
 Record Length10K
 Vertical Resolution (A/D)8 bits (2 Channels simultaneously)
 Vertical Sensitivity5mV/div～5V/div (at input)
 Trigger TypeEdge, Pulse, Video, Slope, and Alternate
 Trigger ModeAuto, Normal, and Single
 Waveform Math＋, －, ×, ÷, invert, FFT
 Communication InterfaceUSB host, USB device, Pass / Fail, LAN, and VGA (optional)
 Batterynot supported
 Dimension (W×H×D)348 × 170 × 78 (mm)
 Weight (without package)1.50 kg
