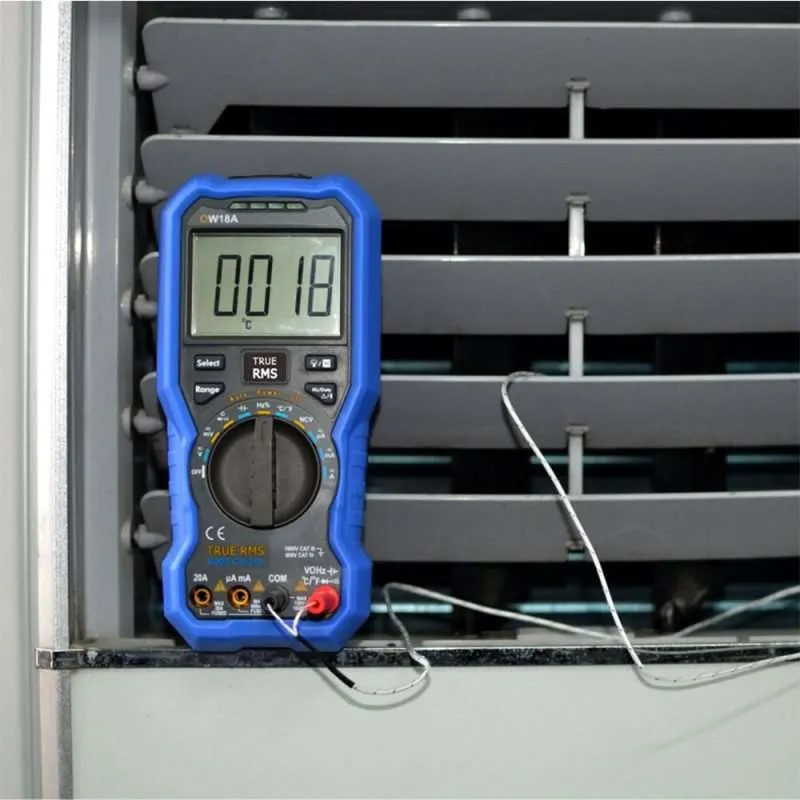

OWON OW18 Series Field

OWON OW18A

SKU: OWON OW18A Categories: ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

 OWON OW18 Series NCV Multimeter

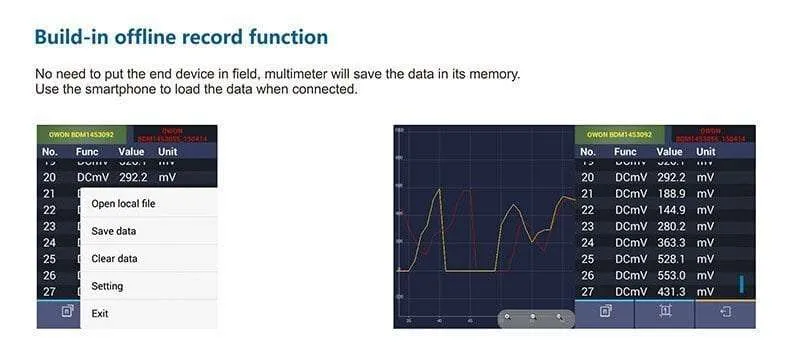

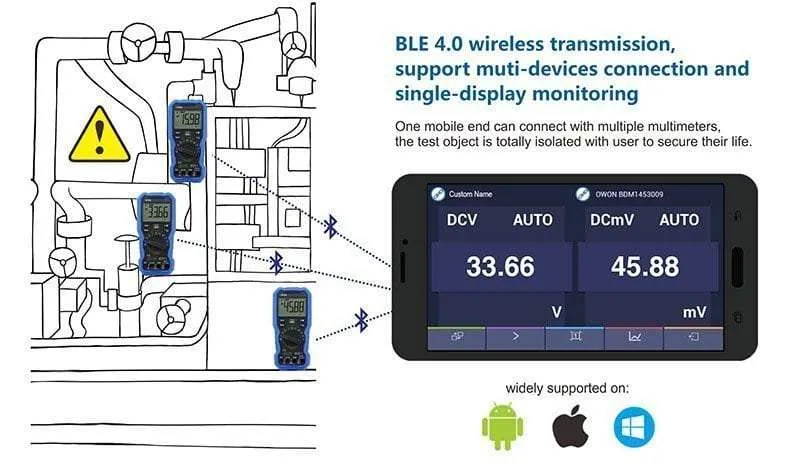

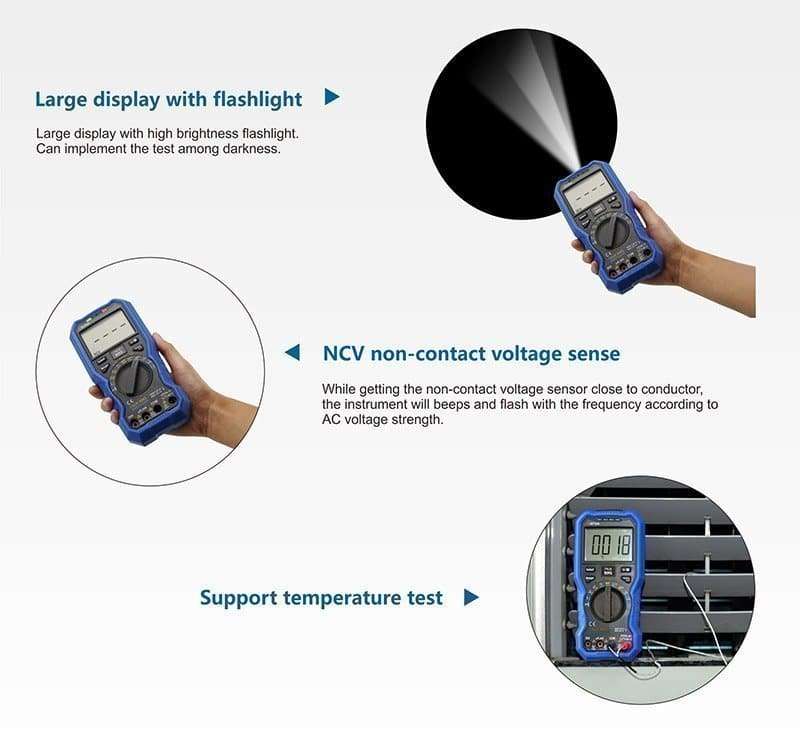

OWON Digital NCV Multimeter with Bluetooth is the branch of OWON's handheld multimeter series. With smaller size and faster reponse rate. Support NCV, True RMS, bluetooth communication. Can be used as Data Logger, Multimeter and Thermometer. Contact us for more detail information!BLE 4.0 wireless transmission, support muti-devices connection and single-display monitoring.One mobile end can connect with multiple multimeters, the test object is totally isolated with user to secure their life.Not only a multimeter, also a data logger and thermometer.Real time data are updated and recorded to end user device, no need to be in field. User can define the record time and sampling gap, data can be shown as chart and diagram, multi-devices connection supports data comparison. User and test object are totally isolated, which secure the life. Build-in offline record function.No need to put the end device in field, multimeter will save the data in its memory. Use the smartphone to load the data when connected.Large display with flashlight.Large display with high brightness flashlight. Can implement the test among darkness.NCV non-contact voltage sense.While getting the non-contact voltage sensor close to conductor, the instrument will beeps and flash with the frequency according to AC voltage strength.Support temperature test

Model: OW18AMeasurement RangeResolutionAccruacy

DC Voltage		 60.00mV / 600.0mV0.01mV±(0.5%+2 dig)
 6.000V / 60.00V / 600.0V1 mV
1000V1 V±(0.8%+2 dig)

AC Voltage		 600.0mV0.1mV±(0.8%+3dig)
6.000V / 60.00V / 600.0V1 mV
750V1 V±(1%+3dig)
DC CurrentμA600.0uA / 6000μA0.1μA±(0.8%+2dig)
mA60.00mA / 600.0mA0.01mA
A20.00A0.01A±(1.2%+3dig)
AC CurrentμA600.0uA / 6000μA0.1μA±(1%+3dig)
mA60.00mA / 600.0mA0.01mA
A20.00A0.01A±(1.5%+3dig)
Resistance600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ0.1Ω±(0.8%+2dig)
60.00MΩ0.01 MΩ±(2%+3dig)
Capacitance60.00nF / 600.0nF / 6.000μF / 60.00μF0.01nF±(2.5%+3dig)
600.0μF / 6.000mF / 60.00mF0.1μF±(3%+5dig)
Frequency9.999Hz / 99,99Hz/999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz0.001Hz±(0.8%+2dig)
Duty Ratio0.1% – 99.9% ( typical value：Vrms=1V, f=1kHz)0.1%±(1.2%+3dig)
0.1% – 99.9% ( ≥1kHz )±(2.5%+3dig)
Temperature (°C/°F)– 50 ℃~ +400℃1℃±(2.5%+3dig)
-58 ℉~ +752 ℉1℉±(4.5%+5dig)
Display5999
Frequency Response(40 – 1000) Hz
Shift Rate3 times/s



Bluetooth ModuleNot AvailableAuto Ranging√
True RMS√  LCD Backlight√
Diode Test√ Automatic-manual Range Selection√
Auto Power-off√ Input Protection√
On-off Warning√ Input Impedance≥10MΩ
Low-battery Indicator√ Safety ComplianceCATⅣ600V,  CATⅢ1000V
Data Hold√ NCV√
Relative Measurement√ Dimension (W×H×D)190 x 90 x56 (mm)
Flashlight√ Weight (without package)0.30 kg

Datasheet: OWON OW18D OW18Edatasheet
Instruction Manual: Owon OW18 Manual
