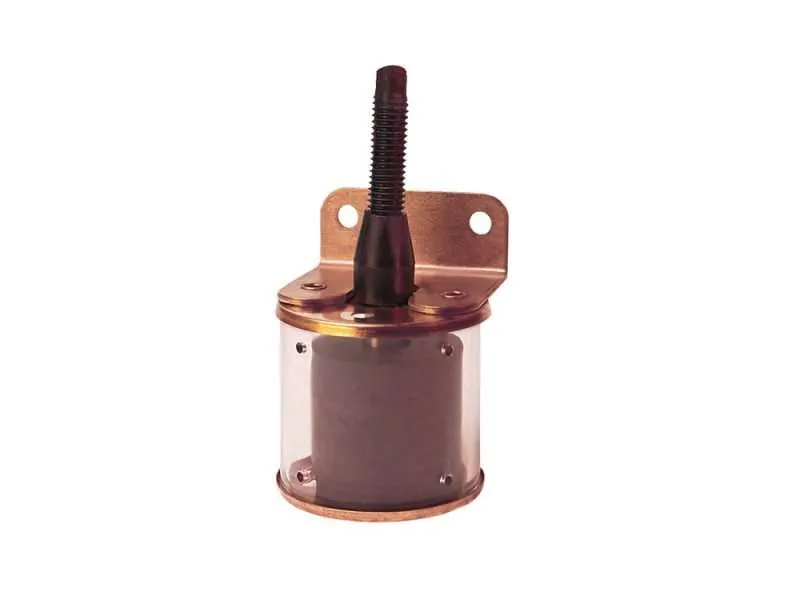

Gems LS-270 Series Single-Point Level Switch
Last Updates: 15/02/2021Gems Sensors & Controls 43982
RM966
| Actuation Level | 1 3/8″ | | Switch Operation | Normally Closed (Reversible) | | Min. Liquid | 0.55 | | Stem Material | 316 Stainless Steel | | Float Material | Buna | | Float Diameter | 1 7/8″ | | Mounting Size | Bracket | | Mounting | Vertical | | Switch Type | SPST (50 VA) | | Input | N/A | | Output | N/A | | Maximum Pressure (PSI) | 150 | | Minimum Temperature (°F) | -40 | | Maximum Temperature (°F) | 140 | | Electrical Termination | 18 GA, 2 Conductor 72″ Neoprene cable | | Wetted Materials | 316 Stainless Steel, Buna N, Berylium Copper, Copper Nickel, Polycarbonate, 304 Stainless Steel | | Approvals | ROHS |
|
These units are ideal for use in oils and water. Small, lightweight, and extremely stable in non-static, highly contaminated liquids. Slosh shielding minimizes effects of turbulence and helps prevent interference by foreign material. Bracket-mounted to any convenient surface.
