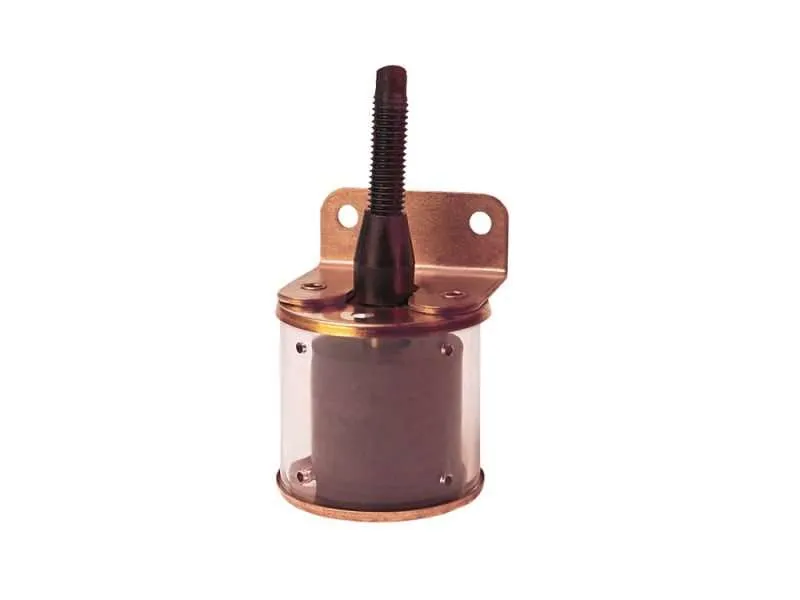

Gems LS-270 Series Single-Point Level Switch

Last Updates: 24/04/2021

Gems Sensors & Controls 43980


Actuation Level1 3/8″
Switch OperationNormally Open (Reversible)
Min. Liquid0.55
Stem Material316 Stainless Steel
Float MaterialBuna
Float Diameter1 7/8″
Mounting SizeBracket
Switch TypeSPST (50 VA)
Maximum Pressure (PSI)150
Minimum Temperature (°F)-40
Maximum Temperature (°F)140
Electrical Termination18 GA, 2 Conductor 72″ Neoprene cable
Wetted Materials316 Stainless Steel, Buna N, Berylium Copper, Copper Nickel, Polycarbonate, 304 Stainless Steel

These units are ideal for use in oils and water. Small, lightweight, and extremely stable in non-static, highly contaminated liquids. Slosh shielding minimizes effects of turbulence and helps prevent interference by foreign material. Bracket-mounted to any convenient surface.


Datasheet: Gems_Specialty-Switches
Instruction Manual: Gems_LS-270_Manual
Instruction Manual: Reed Switch Protection
