| Actuation Level | 1 1/4″ |
| Switch Operation | Normally Open (Non-Reversible) |
| Min. Liquid | 0.55 |
| Stem Material | Aluminum |
| Float Material | Buna |
| Float Diameter | 1 7/8″ |
| Mounting Size | 1/4″ NPT Male |
| Mounting | Vertical |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 150 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 180 |
| Electrical Termination | 18 AWG, 24″ long, Polymeric leads |
| Wetted Materials | Aluminum, Buna N, 316 Stainless Steel, Hysol |
| Approvals | ROHS |

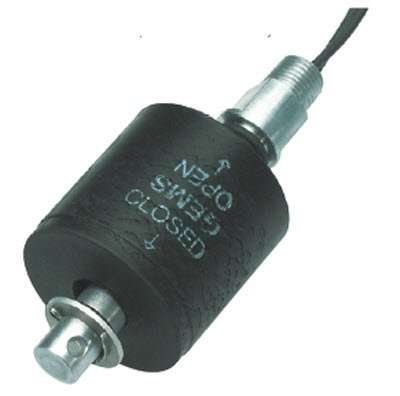

Gems LS-1900 Series Single-Point Level Switch
