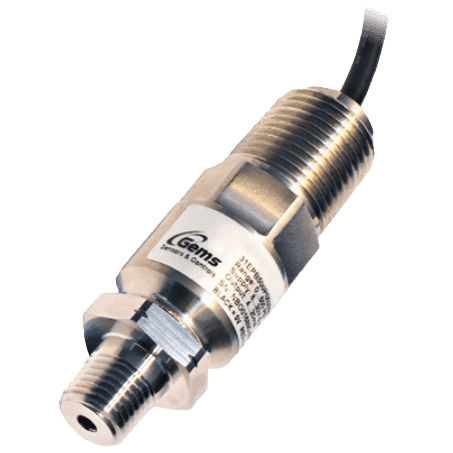

Gems – 31EP/EA & 32EP/EA Series Pressure Transducers

Oil & Gas equipment needs a pressure transducer that is reliable and able to withstand extreme environmental and pressure conditions. Gems Sensors explosion proof units offer an alternative to high priced, unreliable alternatives. The 31EP and 32EP are CSA approved explosion-proof, and the Gems 31EA/32EA carries the ATEX approval. They all feature all stainless steel wetted parts, a broad selection of pressure connections, and a wide choice of electrical outputs—the 32 Series of each group provide higher proof pressures. Our manufacturing process includes the latest automated equipment, producing consistent sensor performance.

The compact yet rugged construction of these units makes them ideal for installation where space in a hazardous environment is at a premium.

3XEP Series Pressure Transducer, rated at up to 30 V dc, 28 mA, 2200 bar max, single seal, factory seal, 0.84W max. Temperature Code T4. Ambient temperature range: -40°C to +95°C.

  • CSA (31EP/32EP):
    – Class I, Division 1, Groups A, B, C and D
    – Class I, Zone 1 Exd IIC T4 Gb
    – Class I, Zone 1 AExd IIC T4 Gb
  • ATEX (31EA/32EA)
     -Exd IIC T4 Gb (Ambient Temperature: -40°C to +95°C)

Datasheet: Gems_31EP-32EP-Series-Datasheet
Instruction Manual: Gems_31EP-32EP_Manual
