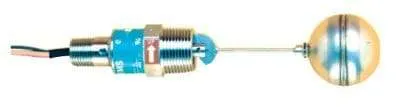

Gems LS-2050 Series Level Switch
| Actuation Level | 1″ |
| Switch Operation | Selectable |
| Min. Liquid | 0.90 |
| Stem Material | 316 Stainless Steel |
| Float Material | 316 Stainless Steel |
| Float Diameter | 2″ |
| Mounting Size | 1″ NPT Male |
| Mounting | Horizontal |
| Switch Type | SPDT (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 900 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 300 |
| Electrical Termination | 18 AWG, 24″ long, Polymeric leads |
| Wetted Materials | 316 Stainless Steel, Teflon, Ceramic |
| Approvals | UL Recognized, CSA Listed, CE, ROHS |
These Gems LS-2050 Series Level Switch units solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks. The operation is positive and dependable. The float pivots with changing liquid levels, displacing a shuttle which magnetically actuates a hermetically sealed switch within the unit. Installation is through the tank side at the detection point. General purpose materials designed to provide reliable service in oils and water. Ultimate strength: for pressures up to 900 psig (62 bar) and temperatures up to 300°F (149°C). Explosion-proof models are available
