|Primary Material of Construction||Alloy|
|Sensor Type||Piston Type|
|Flow Setting (GPM)||0.50|
|Port Size||1/4″ NPT Female|
|Switch Type||SPDT (20VA)|
|Set Point Accuracy||±10%|
|Maximum Pressure (PSI)||Over 500|
|Minimum Temperature (°F)||-20|
|Electrical Termination||18 AWG, 24″-26″ long Polymeric Leads|
|Set Point Differential||15%|
|Wetted Materials||Brass, Polysulfone, 316 Stainless Steel, Viton, Epoxy|
|Approvals||UL Recognized, UL Explosion Proof, CSA Listed, CE, FM|
|Recommended Filtration||50 micron|

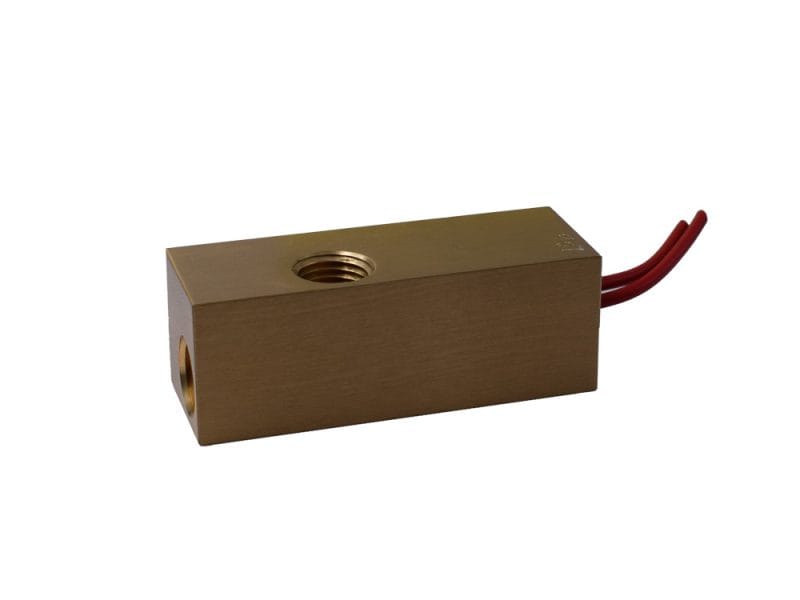

Gems Sensors & Controls 26916
This series of precision-calibrated switches provide reliable and consistent performance; repeatability is within 1%. FS-925 units are factory preset for actuation at specified flow rates.
These switches provide accurate detection of excessive or insufficient flow rates in such applications as: protecting against loss of fluid flow in hydraulic systems, assuring proper coolant flow in semiconductor processing equipment, monitoring high pressure lubrication systems, and ensuring proper air flow in water/waste systems.
