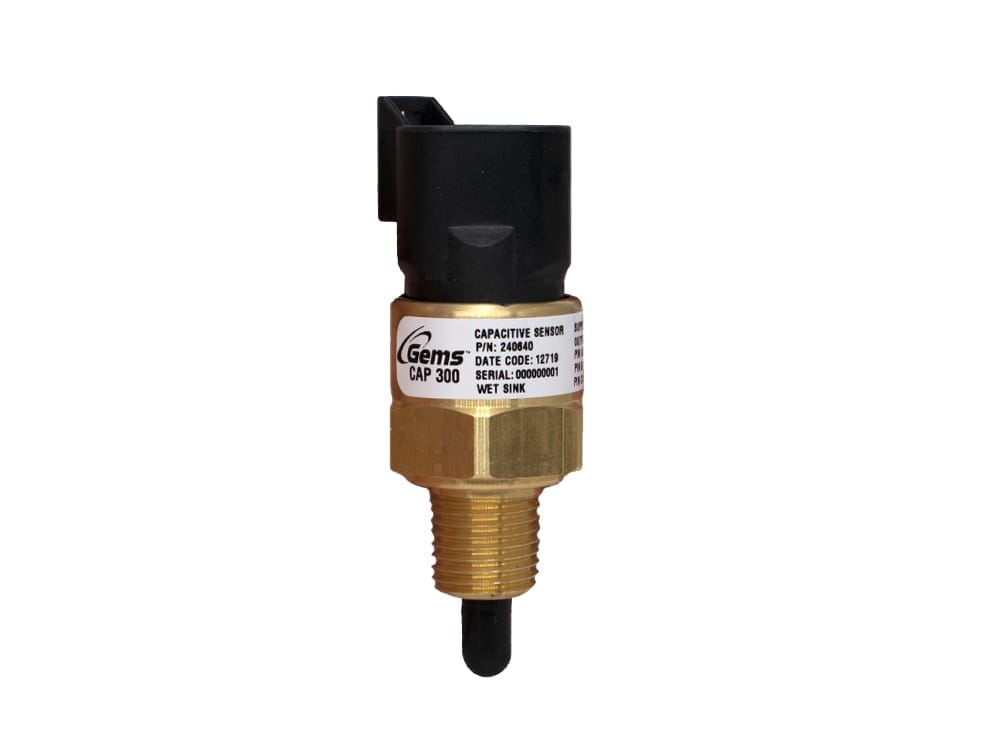

Gems 242980

Actuation Level N/A
Switch Operation Wet Sink
Min. Liquid N/A
Stem Material Brass
Float Material N/A
Float Diameter N/A
Mounting Size 1/2″-14 NPT
Mounting Vertical or Horizontal
Switch Type Open Collector sourcing output, 9-32 VDC, 30 ma max
Input 9-32 VDC
Output Current Sinking . 9-32 VDC, 30 ma max
Maximum Pressure (PSI) 100
Minimum Temperature (°F) -40
Maximum Temperature (°F) 158
Electrical Termination 36″ PVC Cable
Wetted Materials Brass. EPDM, Versaplast
Approvals CE, IP67, RoHS,

Data Sheet: Gems_CAP300-Datasheet
Instruction Manual: Gems_CAP-300_Manual
