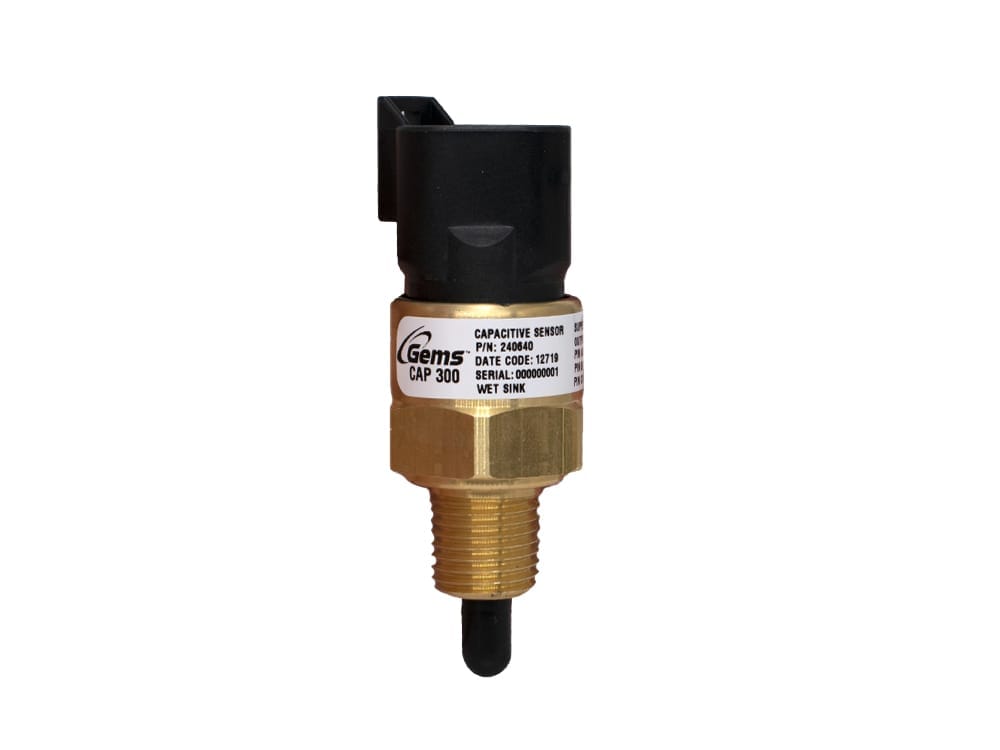

Gems 240645

Actuation Level N/A
Switch Operation Wet Source
Min. Liquid N/A
Stem Material Brass
Float Material N/A
Float Diameter N/A
Mounting Size 1/4″-18 NPT
Mounting Vertical or Horizontal
Switch Type Open Collector sourcing output, 9-32 VDC, 30 ma max
Input 9-32 VDC
Output Current Sourcing . 9-32 VDC, 30 ma max
Maximum Pressure (PSI) 100
Minimum Temperature (°F) -40
Maximum Temperature (°F) 257
Electrical Termination Integral 3-pin Deutsch DT04-3P Connector
Wetted Materials Brass. EPDM, Versaplast
Approvals CE, IP67, RoHS,

Data Sheet: Gems_CAP300-Datasheet
Instruction Manual: Gems_CAP-300_Manuala
