Switch Operation Normally Open (Non-Reversible)
Stem Material Brass
Mounting Size 1/4″ NPT Male
Mounting Vertical or Horizontal
Switch Type TTL/CMOS Compatible
Input 12 VDC
Output Sink 40 ma max, up to 30 VDC
Maximum Pressure (PSI) 250
Minimum Temperature (°F) -40
Maximum Temperature (°F) 230
Electrical Termination 22 AWG, TPE Insulated 78″ Leads
Wetted Materials Glass, Brass
Approvals UL Recognized, CE

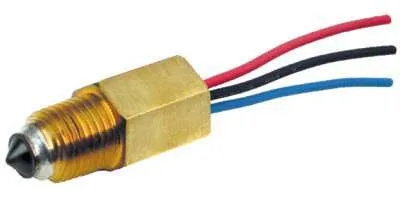

Gems ELS-950M Series Single-Point Level Switch
Gems 232177
Data Sheet: GEMS ELS950M Catalog
Instruction Manual: GEMS ELS950 Instruction Manual
