Actuation Level N/A
Switch Operation Normally Closed (Non-Reversible)
Min. Liquid N/A
Stem Material Brass
Float Material N/A
Float Diameter N/A
Mounting Size 1/2″-20UNF-2B
Mounting Vertical or Horizontal
Switch Type TTL/CMOS Compatible
Input 5 VDC
Output Sink 40 ma max, up to 30 VDC
Maximum Pressure (PSI) 250
Minimum Temperature (°F) -40
Maximum Temperature (°F) 230
Electrical Termination 22 AWG, TPE Insulated 78″ Leads
Wetted Materials Glass, Brass
Approvals UL Recognized, CE

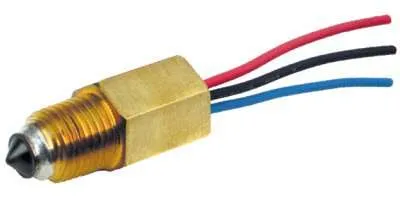

Gems ELS-950M Series Single-Point Level Switch
Gems 232172
