| Model | FS-500 |
| Primary Material of Construction | Plastic |
| Sensor Type | Shuttle Type |
| Adjustable Range | N/A |
| Flow Setting (GPM) | 0.50 |
| Body Material | Polypropylene |
| Port Size | 3/4″ NPT Female |
| Switch Type | SPDT (5A – 240VAC, 28VDC) |
| Set Point Accuracy | ±20% |
| Maximum Pressure (PSI) | 0 – 150 |
| Maximum Temperature | 212 |
| Electrical Termination | Junction Box w/ 6′ PVC Cable |
| Set Point Differential | 20% |
| Wetted Materials | Polypropylene, Viton, 316 Stainless Steel, PH 15-7 Mo Stainless Steel |
| Recommended Filtration | 100 micron |

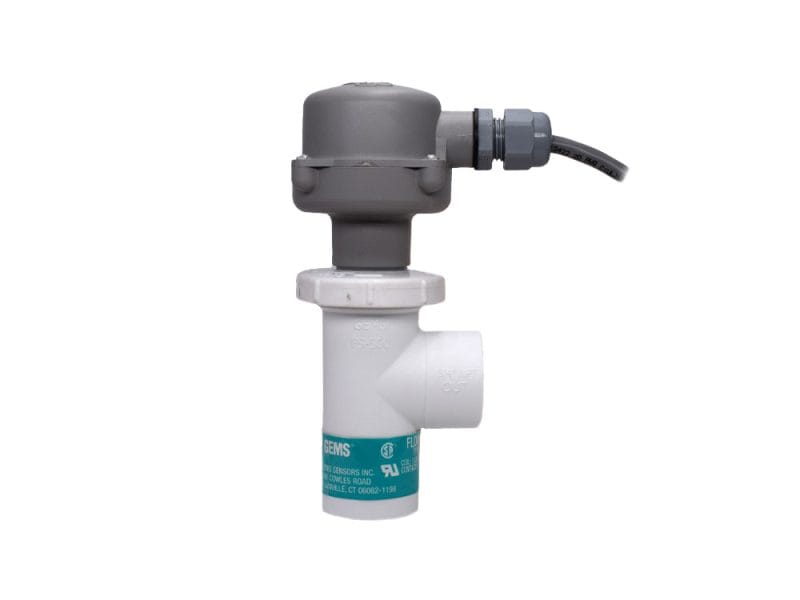

Gems FS-500 Series Flow Switch
Gems 175902
Datasheet: Gems_FS-500-Datasheet
Instruction Manual: Gems_FS-500_Manual
Instruction Manual: Reed Switch Protection
