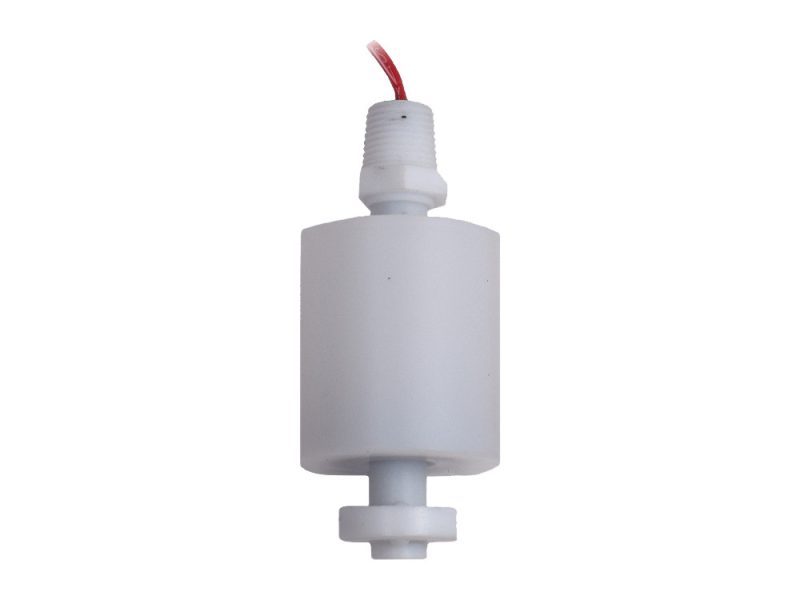

Gems LS-1700TFE Series Single-Point Level Switch

Last Updates: 15/02/2021

Gems Sensors & Controls 174200


Actuation Level1-31/32″
Switch OperationNormally Closed
Min. Liquid0.86
Stem MaterialTeflon
Float MaterialTeflon
Float Diameter1 1/8″
Mounting Size1/8″ NPT Male
Switch TypeSPST (20 VA)
Maximum Pressure (PSI)25
Minimum Temperature (°F)-40
Maximum Temperature (°F)212
Electrical Termination18 AWG, 24″ long, Polymeric leads
Wetted MaterialsTeflon
ApprovalsCE, ROHS


Offers broad chemical compatibility for general purpose use. Also ideal for oils and water. A medium-size solution for ultra-pure liquid level sensing. Made of corrosion resistant PTFE for low particle generation.

Datasheet: Gems_Large-Plastic-LS-Datasheet
Reed Switch Protection Manual: Reed Switch Protection
