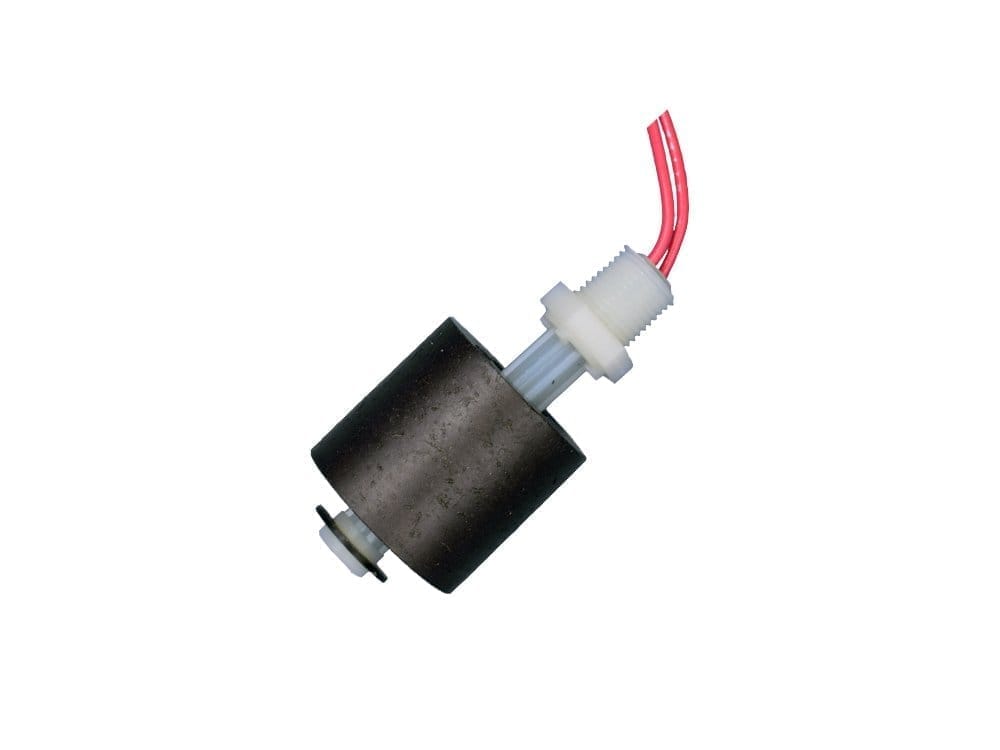

Gems LS-3 Series Single-Point Level Switch

Awaiting product image

Gems Sensors & Controls

Gems 171518

SKU: Gems 171518 Categories: Float Level Switches, Level Switches, Level Transmitters

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Product Details
Downloads

Actuation Level	13/16″
Switch Operation	Normally Open (Reversible)
Min. Liquid	0.60
Stem Material	Polypropylene
Float Material	Polypropylene (Hollow)
Float Diameter	1″
Mounting Size	G 18″-28
Mounting	Vertical
Switch Type	SPST (20 VA)
Input	N/A
Output	N/A
Maximum Pressure (PSI)	50
Minimum Temperature (°F)	-40
Maximum Temperature (°F)	176
Electrical Termination	22 GA, 24″-26″ log 2 Cond PVC Cable
Wetted Materials	Polypropylene, Kynar
Approvals	UL Recognized, CSA Listed, CE

Datasheet: Gems_LS3-Datasheet
Reed Switch Protection Manual: Reed Switch Protection
Instruction Manual: Gems_LS-1700_Manual
