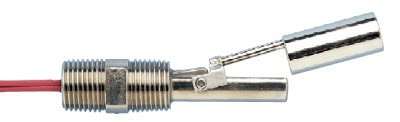

Gems LS-7 Series Type 9 Level Switch

Gems 164870

Switch OperationSelectable
Min. Liquid0.80
Stem Material316 Stainless Steel
Float Material316 Stainless Steel
Float Diameter5/8″
Mounting Size1/2″ NPT Male
MountingHorizontal
Switch TypeSPST (20 VA)
Maximum Pressure (PSI)300
Minimum Temperature (°F)-40
Maximum Temperature (°F)250
Electrical Termination22 AWG 24″, TFE, Zip Cord
Wetted Materials316 Stainless Steel
ApprovalsUL Recognized, CSA Listed, CE



Datasheet: Gems_LS-7-Series-Datasheet
Instruction Manual: Reed Switch Protection
Instruction Manual: Gems_LS-7-Metallic_Manual
