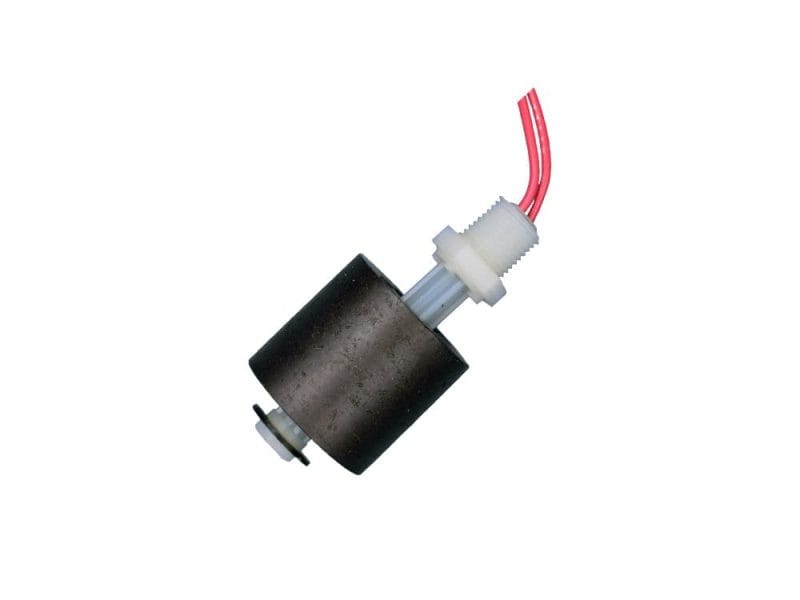

Gems LS-3 Series Single-Point Level Switch

Last Updates: 15/02/2021

Gems Sensors & Controls 162745


Availability: 1 in stock

The durable construction of these reed switch designs ensures long, trouble-free service. Because the effects of shock, wear and vibration are minimized, these hermetically sealed level switches provide precise repeatability with no more than 1% deviation. The level switch actuation points remain constant over the life of the unit.

Ideal for shallow tanks or restricted spaces, or for any low-cost, high volume use. LS-3 Series are available in FDA/NSF compliant materials upon request, consult Gems™ for details.

NEW LS-3 MICRO: Gems’ newest addition to the LS-3 series family is the LS-3 Micro. It is the smallest LS-3 series switch available. These units are ideal for potable water, medical devices and other compact appliances such as printers. Gems LS-3 Micro float enables use in lighter-than-water fluids. These switches are also made with FDA compliant material, which expands the scope in which these floats can be used.

Actuation Level13/16″
Switch OperationNormally Open (Reversible)
Min. Liquid0.45
Stem MaterialNylon
Float MaterialBuna
Float Diameter1″
Mounting Size1/8″ NPT Male
Switch TypeSPST (20 VA)
Maximum Pressure (PSI)150
Minimum Temperature (°F)-40
Maximum Temperature (°F)250
Electrical Termination22 AWG, 24″ long PVC leads
Wetted MaterialsNylon, Buna N
ApprovalsUL Recognized, CSA Listed, CE


Datasheet: Gems_LS3-Datasheet
Reed Switch Protection Manual: Reed Switch Protection
Instruction Manual: Gems_LS-1700_Manual
