| Actuation Level | 3/4″ |
| Switch Operation | Normally Closed (Non-Reversible) |
| Min. Liquid | 0.45 |
| Stem Material | Brass |
| Float Material | Buna |
| Float Diameter | 1″ |
| Mounting Size | Bracket |
| Mounting | Vertical |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 150 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 230 |
| Electrical Termination | 22 AWG, 2 Conductor, 25′, PVC Cable |
| Wetted Materials | Brass, Buna N, Nylon, PVC, Berylium Copper |
| Approvals | UL Recognized, CSA Listed, CE |

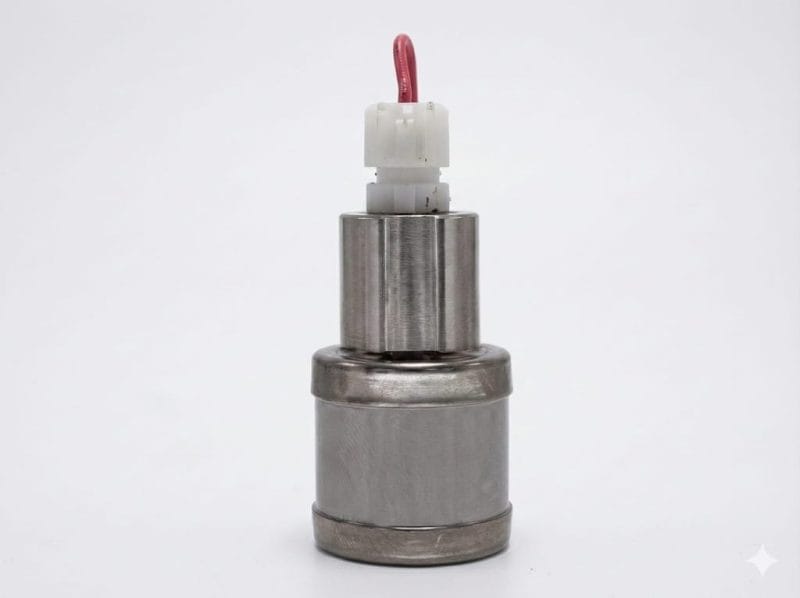

Gems LS-750 Series Single-Point Level Switch
