| Actuation Level | 2″ |
| Switch Operation | Normally Open (Non-Reversible) |
| Min. Liquid | 0.70 |
| Stem Material | Brass |
| Float Material | 316 Stainless Steel |
| Float Diameter | 1 1/2″ |
| Mounting Size | 1/8″ NPT Male |
| Mounting | Horizontal |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 100 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 300 |
| Electrical Termination | 22 AWG, 24″ long Polymeric leads |
| Wetted Materials | Brass, 316 Stainless Steel, Berylium Copper |
| Approvals | UL Recognized, CE, ROHS |

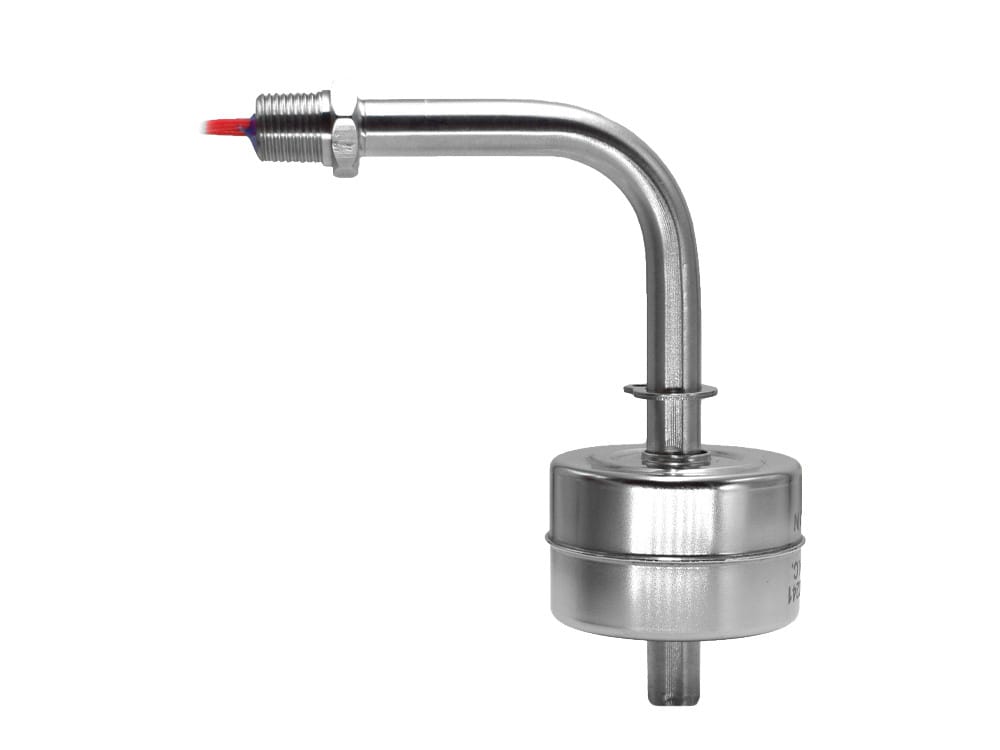

Gems LS-77700 Series Single Point Level Switch
