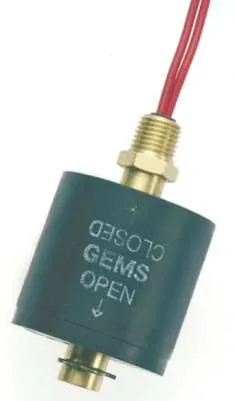

Gems LS-1900 Series Single-Point Level Switch

Last Updates: 15/02/2021

Gems Sensors & Controls 01907

$150

Actuation Level1 3/16″
Switch OperationNormally Open (Reversible)
Min. Liquid0.55
Stem Material316 Stainless Steel
Float MaterialBuna
Float Diameter1 7/8″
Mounting Size1/4″ NPT Male
MountingVertical
Switch TypeSPST (20 VA)
InputN/A
OutputN/A
Maximum Pressure (PSI)150
Minimum Temperature (°F)-40
Maximum Temperature (°F)230
Electrical Termination18 AWG, 24″ long, Polymeric leads
Wetted Materials316 Stainless Steel, Buna N, Hysol
ApprovalsUL Recognized, CSA Listed, CE, ROHS



Excellent stability for general use in oils and water. With large float displacement, switch withstands rough service; suitable for high viscosity liquids. Intermediate in size.
