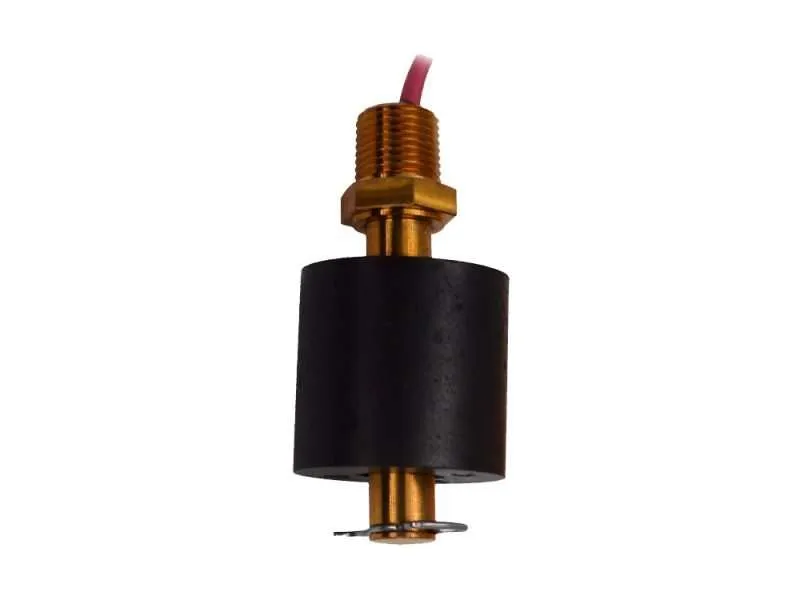

Gems Sensors LS-1700 Series Single-Point Level Switch
Gems Sensors Sensors 01701
| Actuation Level | 9/16″ |
| Switch Operation | Normally Open (Reversible) |
| Min. Liquid | 0.45 |
| Stem Material | Brass |
| Float Material | Buna |
| Float Diameter | 1″ |
| Mounting Size | 1/8″ NPT Male |
| Mounting | Vertical |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 300 |
| Minimum Temperature (°C) | -40 |
| Maximum Temperature (°C) | 149 |
| Electrical Termination | 22 AWG, 24″ long Polymeric leads |
| Wetted Materials | Brass, Buna N, 316 Stainless Steel, Epoxy |
| Approvals | UL Recognized, CSA Listed, CE, ROHS |
