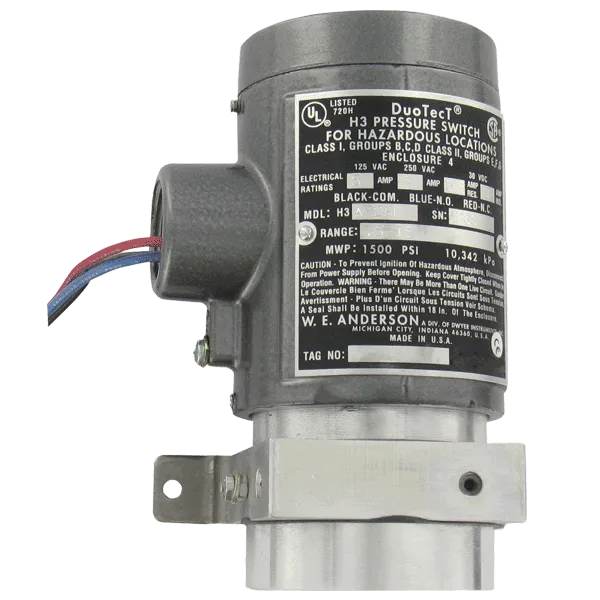

Dwyer Series H3 Explosion-Proof Differential Pressure Switches

SKU: Series H3 Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Explosion-proof Series H3 Explosion-Proof Differential Pressure Switch, heavy duty, industrial unit has a unique new design which provides sensitivity to differential pressures as low as 10 inches of water (254 mm w.c.), yet handles total pressure of 1500 psi (103 bar). Unlike common differential pressure switches that use a piston-type motion transfer, the Series H3 utilizes a rotary motion transfer shaft that prevents a change in total pressure from causing a setpoint shift. Unit yields deadbands approximately 5% of range, with zero setpoint shift due to variation in working pressures. Friction is minimized and repeatability increased by allowing range spring to act directly on diaphragm plate. Rolling diaphragm design maintains constant effective area to further reduce friction. Diaphragm is allowed to “seat”, allowing application of full rated pressure, up to 1500 psi (103 bar), on either high or low pressure port, without damage. Special over-travel feature prevents overtightening of range adjust screw.

Choose optional 316SS chamber for water and water-based fluids or harsher applications.

Product Applications

  • Water flow proving with an orifice plate.
  • Differential pressure across chiller.
  • Liquid filter status.
  • Perfect for monitoring differential water pressure on filters, chiller coils, and flow elements.

Wetted Materials : See Ordering page.

Temperature Limit : -4 to 220°F (-20 to 104°C). ATEX: -4 to 194°F (-20 to 90°C).

Pressure Limit : 1500 psig (103 bar).

Enclosure Rating : Standard meets NEMA 4X (IP56); Drain option meets NEMA 3 (IP54). For hazardous use see “Hazardous Location Ratings Chart” on Catalog page.

Switch Type : SPDT or DPDT snap switch.

Electrical Rating : 5 A @ 125/250 VAC, 30 VDC.

Electrical Connections : See Ordering page.

Conduit Connection : 3/4″ female NPT.

Process Connection : 1/8″ female NPT.

Mounting Orientation : Vertical.

Set Point Adjustment : Internal screw.

Weight : 4 lb 2 oz (2 kg).

Deadband : Approximately 5% of range.

Agency Approvals : ATEX (see “Ratings Chart” on catalog page), CE, CSA, UL.

  • Rotary motion design prevents set point shifts
  • Explosion-proof housing for use in applications where protection of process and personnel is needed
  • Option for use with water and water-based solution makes this a versatile switch
