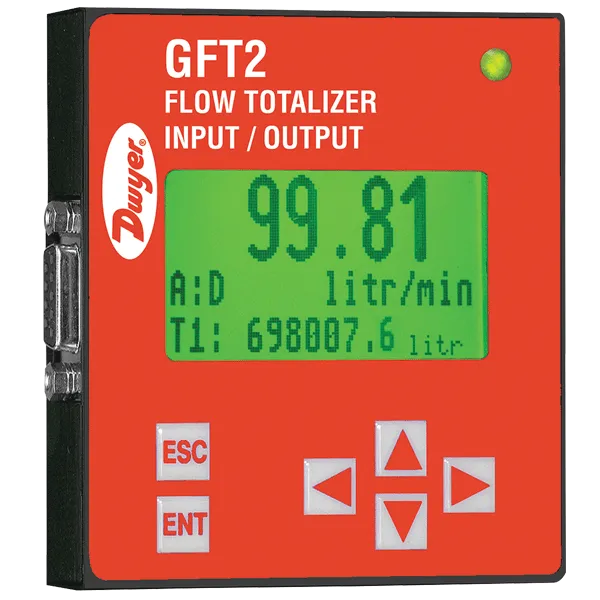

Dwyer Series GFT2 Flow Totalizer

SKU: Series GFT2

Graphic LCD, Digital RS-232 or RS-485 Interface

Category: Flow Meters

Price on request

Send us your requirement and we'll reply with a quotation and technical advice.

⏱ We reply within 1 working day. Specs & downloads ↓
🛠️
Lifetime technical support
🚚
Free domestic shipping
🎯
Calibration services

Follow Celectric's WhatsApp Channel →

Product details

The Series GFT2 Flow Totalizer is a microcontroller driven device designed to linearize the flow meter and controller flow curve plus display the instantaneous flow rate, total, and accumulated total. The totalizer is intended to be used with analog flow meters and controllers with analog 0 to 5 VDC, 0 to 10 VDC, or 4 to 20 mA interface. RS-232 or RS- 485 digital interface is available.

  • Linearizes the flow curve of analog flow meters and controllers
  • Displays instantaneous flow rate, total, and accumulated total
  • Supports up to 47 volumetric and mass flow engineering units, including user-defined units
  • Adjustable LCD backlight and contrast, with large 13mm rate / 5.5mm total digits
  • Compact enclosure suitable for unit, panel, wall, or field mounting
  • Low and high flow alarms with a programmable action delay
  • Free configuration and mounting utility software
Accuracy±0.1% of full scale
Analog Input0–5 VDC, 0–10 VDC, or 4–20 mA
Digital OutputRS-232 or RS-485, depending on model
Power Supply12–26 VDC
Operating Temperature-10 to 70°C (14 to 158°F)
WeightApprox. 0.3 lb (125 g)

What does the GFT2 do that a standard flow meter display doesn’t?
It linearizes the analog signal from a flow meter or controller so the displayed rate, total, and accumulated total stay accurate across the meter’s full range.

Can it drive a PLC or data logging system?
Yes — it offers RS-232 or RS-485 digital output, depending on model, for integration with a PLC or monitoring system.

Is special software required to configure it?
Dwyer provides free configuration and mounting utility software, so no separate license is needed to set engineering units, alarms, or display options.

Download Dwyer Series GFT2 Flow Totalizer information here

Datasheet: Dwyer_Series-GFT2_Catalog
Manual: Dwyer_GFT2_Manual

Not sure this is the right instrument?

Tell us about your application and our engineers will recommend the right model.
