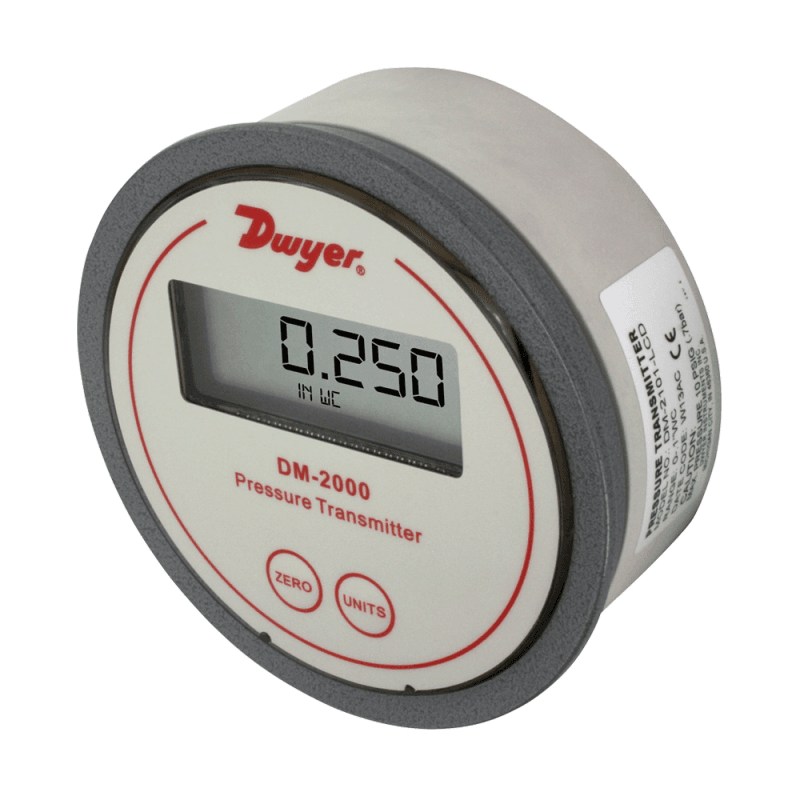

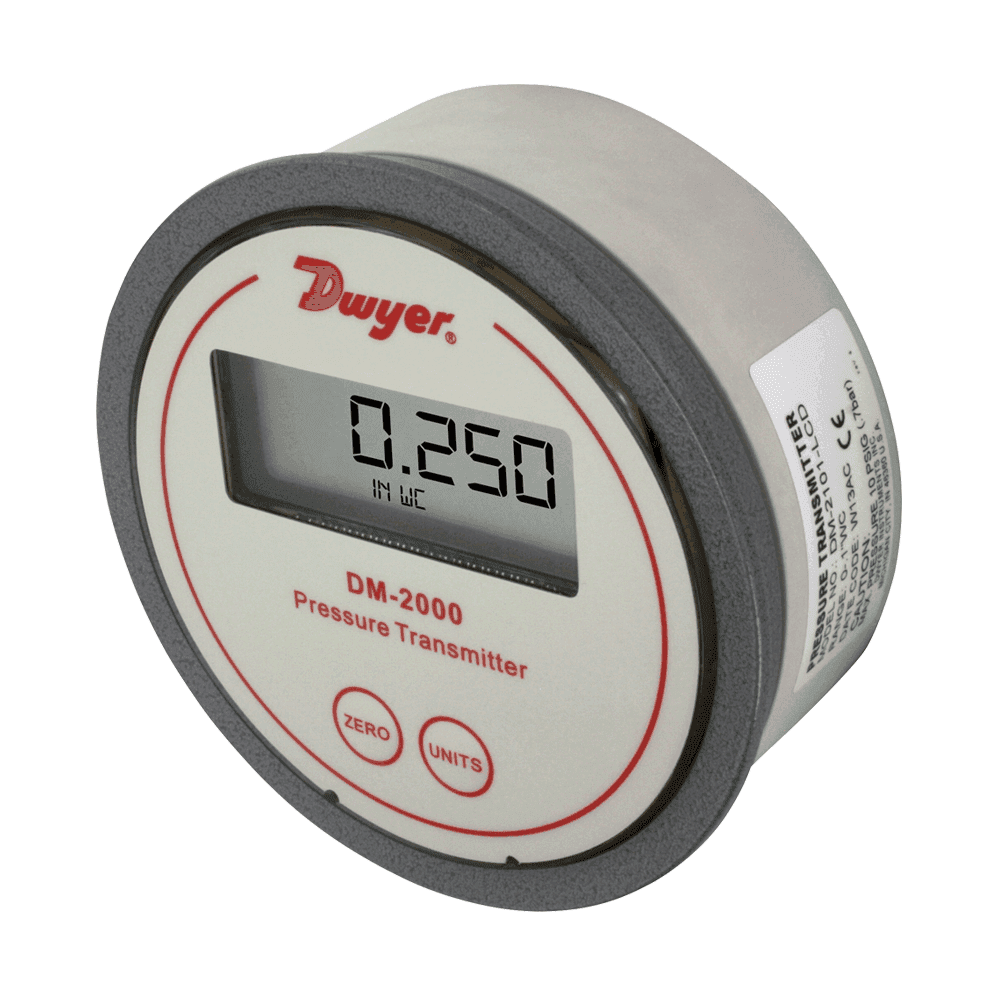

Dwyer Series DM-2000 Differential Pressure Transmitter

The Dwyer Series DM-2000 Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM-2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic® gage. A wide range of models are available factory calibrated to specific ranges.

Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy. Digital push-button zero and span simplify calibration over typical turn-potentiometers. An optional 3.5 digit LCD shows process and engineering units. A single push button allows field selection of 4 to 6 engineering units depending on range.

Product Applications

  • Filter monitoring
  • Fan pressure indication
  • Static pressures in ducts or buildings
  • Bi-direction ranges ideal for sensing fluctuating building pressure

Service : Air and non-combustible, compatible gases.

Wetted Materials : Consult Factory.

Accuracy : ±1% FS at 70°F.

Stability : ±1% FS/yr.

Temperature Limits : 20 to 120°F (-6.67 to 48.9°C).

Pressure Limits : 10 psig (0.69 bar).

Thermal Effect : ±0.055% F.S./°F (0.099% F.S./°C).

Power Requirements : 10 to 35 VDC (2 wire).

Output Signal : 4 to 20 mA.

Zero and Span Adjustments : Digital push-button zero and span.

Loop Resistance : DC: 0 to 1250 Ω maximum.

Current Consumption : DC: 38 mA maximum.

Electrical Connections : Screw-type terminal block.

Display : 3.5 digit LCD, 0.7″ height.

Process Connections : 1/8″ I.D. tubing.

Mounting Orientation : Vertical.Weight:4.8 oz (136 g).

  • Zero and span controls provide easy calibration checks and shorter installation time to get device running and monitoring
  • Quick response to pressure changes means no delay in signaling and alerting to critical situations
  • Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
  • Same size as Magnehelic simplifies field upgrade to digital pressure gage by reducing install steps
  • Tamper proof button configuration to prevent accidental changes to the settings

Manual: Instruction Manual
Catalog Pages: Series DM-2000 Catalog Page
Product Data Sheet: DM-2000 Datasheet
