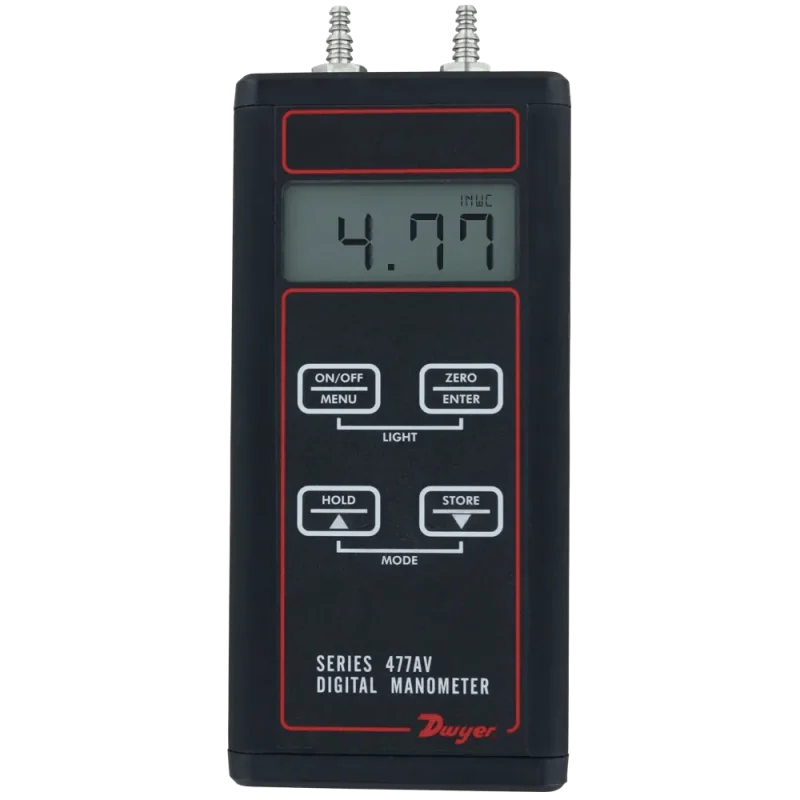

Dwyer Series 477AV Handheld Digital Manometer

Part Number: Series 477AV Categories: ,

Email Us: sales@celectric.com.my
WhatsApp Us: +60165519084

The Series 477AV Handheld Digital Manometer is now available with pressure, flow, and velocity measurements along with a number of other convenient features. The built-in air velocity and flow calculations provide accuracy and conserve time and error associated with manual calculations. Also featured on this unit are adjustable zero and span values for calibrating in the field, as well as a damping feature to compensate for the fluctuating of readings.



Product Applications

  • Air flow monitoring
  • Duct static pressure

Service : Air and compatible gases.

Wetted Materials : Consult factory.

Accuracy : ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C).

Pressure Hysteresis : ±0.1% of full scale.

Pressure Limits : See chart on catalog page.

Temperature Limits : 0 to 140°F (-17.8 to 60°C).

Compensated Temperature Limits : 32 to 104°F (0 to 40°C).

Storage Temperature Limits : -4 to 176°F (-20 to 80°C).

Display : 0.42″ (10.6 mm) 4 digit LCD.

Resolution : See chart on catalog page.

Units of Pressure : in w.c., ft. w.c., in Hg, psi, oz/in², mm w.c., cm w.c., mm Hg, mbar, Pa, kPa, hPa.Units of Velocity:fpm, fps, mph, m/h, m/s, k/h, knot.

Units of Flow : cfm, m3/h, m3/s.

Power Requirements : 9 V Alkaline battery, installed non-functional, user replaceable.

Weight : 10.2 oz (289 g).

Process Connections : Two barbed connections for use with 1/8″ (3.18 mm) or 3/16″ (4.76 mm) ID tubing. Two compression fittings for use with 1/8″ (3.18 mm) ID x 1/4″ (6.35 mm) OD tubing for 477AV-7 and 477AV-8 only.

Agency Approvals : CE.

  • Calculates and displays air velocity and volumetric air flow
  • Rugged aluminum case protects instrument from damage during transport/use
  • 9 selectable English and metric engineering units
  • Large, easy to read display with backlight for use in dark areas
  • Stores up to 40 readings with minimum, maximum and average statistics
