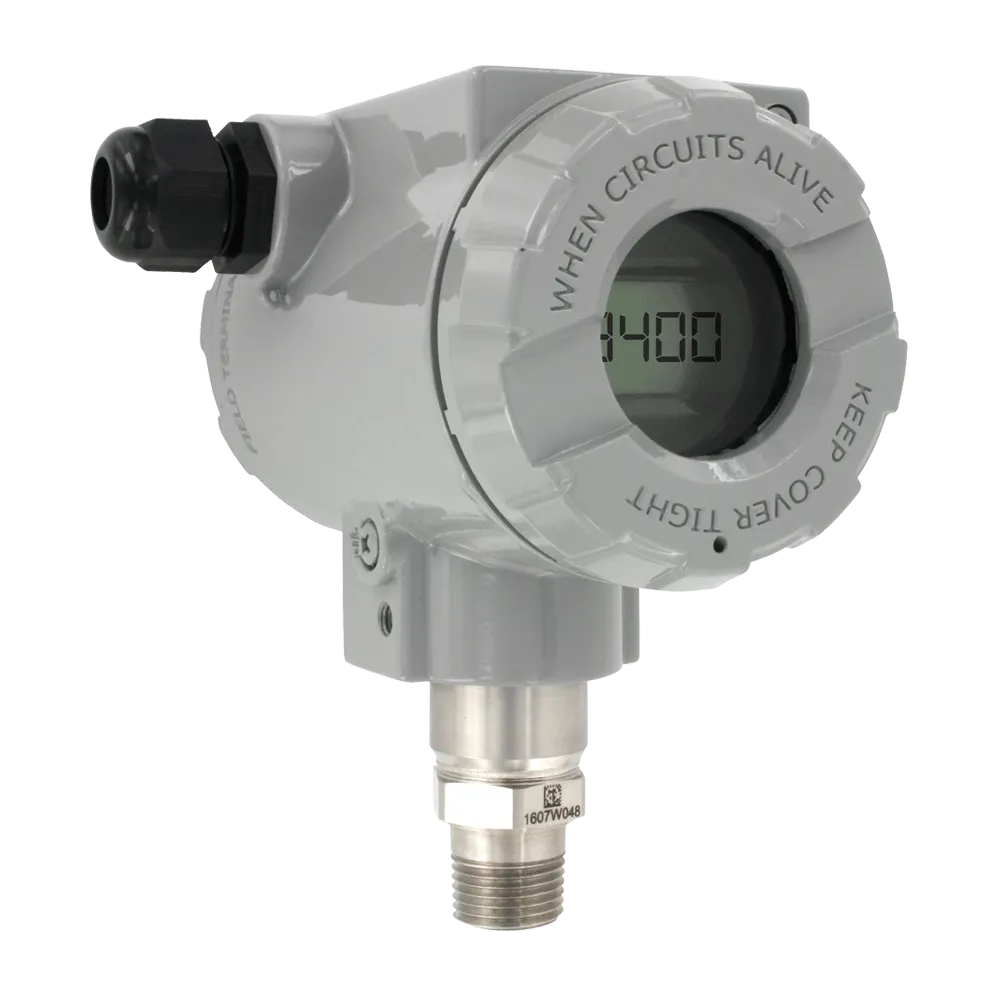

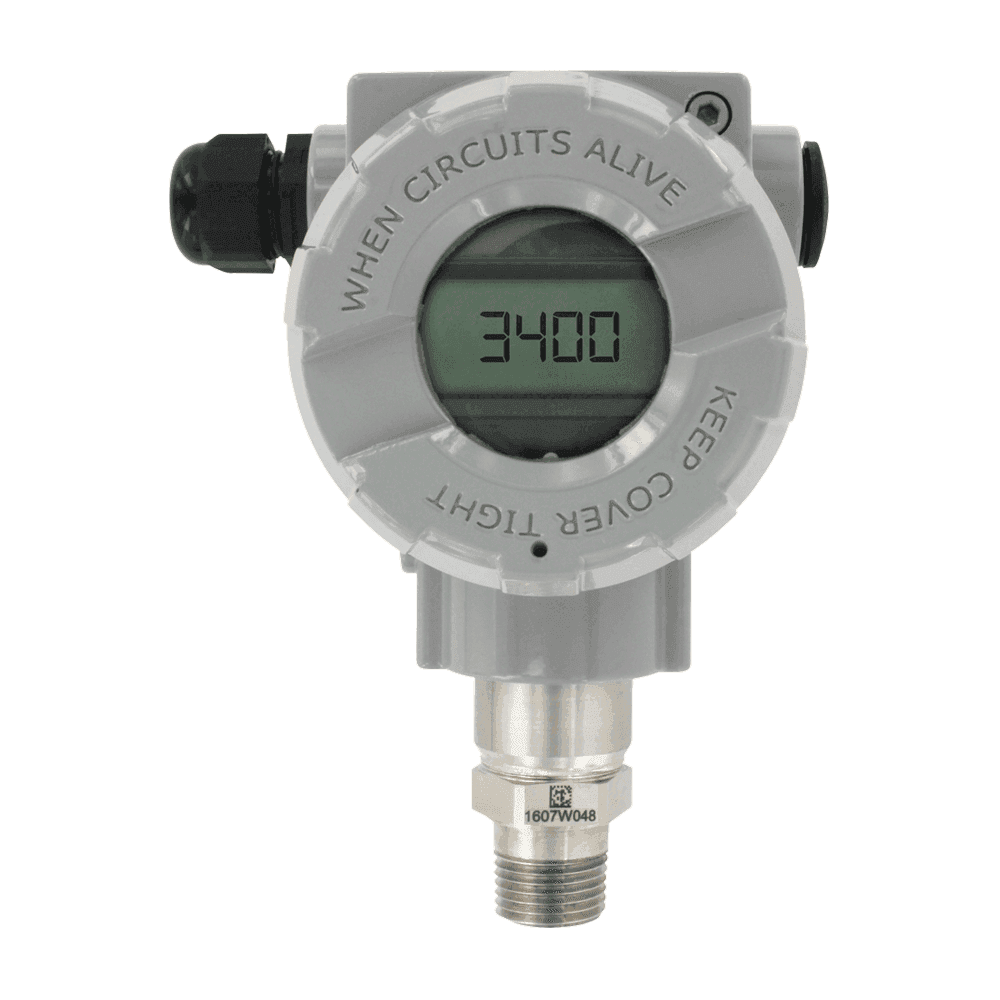

Dwyer Series 3400 Smart Pressure Transmitter

Part Number: Series 3400 Categories: ,

Email Us: sales@celectric.com.my
WhatsApp Us: +60165519084

The Series 3400 Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and is programmable using HART® Communication. The Series 3400 is capable of being configured with the zero and span buttons (a field calibrator is not required for configuration). The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3400 can be configured to be ATEX or IECEX approved for use in hazardous (classified) locations. The rangeability allows the smart transmitter to be configured to fit most applications.

Product Applications

  • Water and wastewater
  • Chemical and petrochemical
  • Pulp and paper
  • Oil and gas
  • Food and beverage

Service : Compatible gases, steam, liquids or vapors.

Wetted Materials : 316L SS.

Accuracy:±0.075% FS (@ 20°C).

Rangeability : Up to 100:1 turn down.

Stability : ≤0.075% FSO/3 years.

Temperature Limits:Ambient : -40 to 185°F (-40 to 85°C); Process with -DS: -40 to 400°F (-40 to 204°C).

Thermal Effect : < ±0.05% span/10°C.

Power Requirements : 10 to 55 VDC.

Output Signal : 4 to 20 mA.

Response Time : 16 to 480 ms (programmable).

Damping Time : 0 to 60 seconds.

Electrical Connection : Packing gland M20x1.5, two 1/2″ female NPT conduit, screw terminal.

Process Connections : 1/2″ female or male NPT.

Enclosure Rating : NEMA 4X IP66/IP67.

Agency Approvals : CE.

  • High accuracy (±0.075% FS)
  • Rangeability (up to 100:1)
  • Completely configurable using zero/span buttons (no calibrator required)
  • Fail-mode process function
  • Automatic ambient temperature compensation
