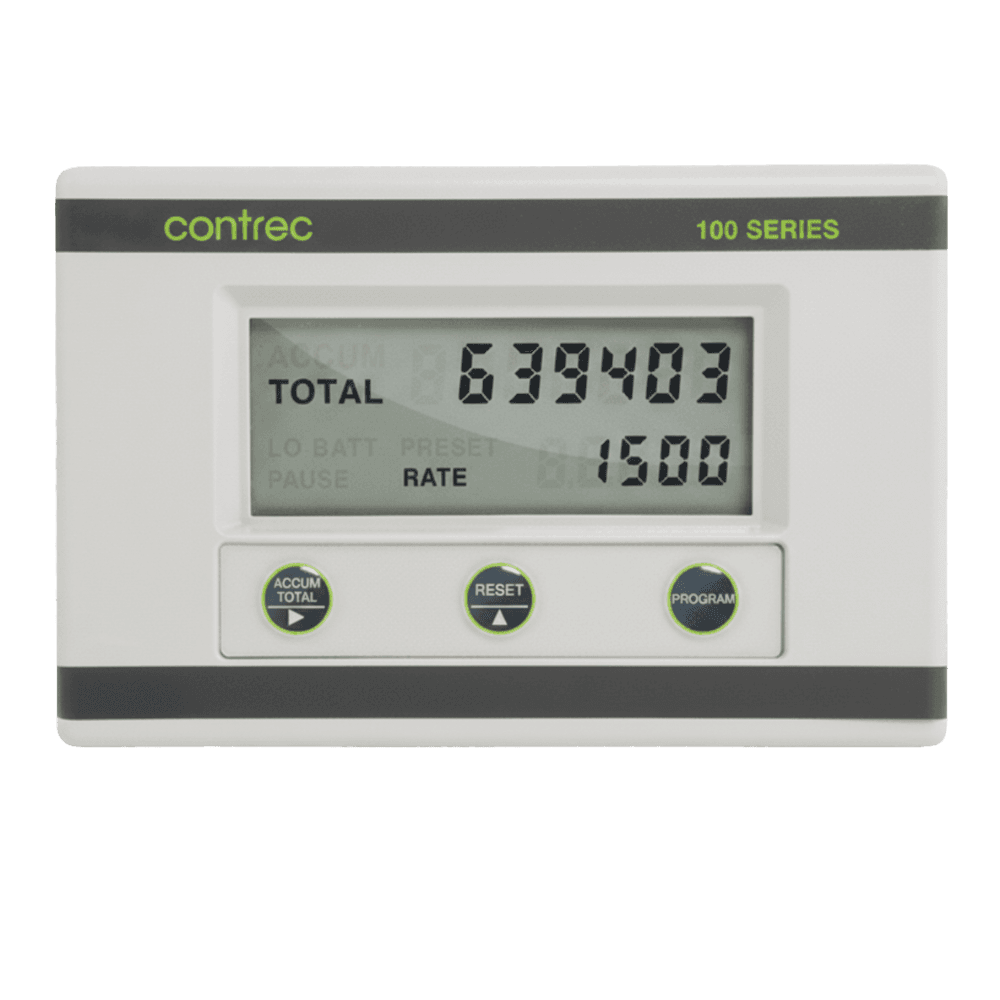

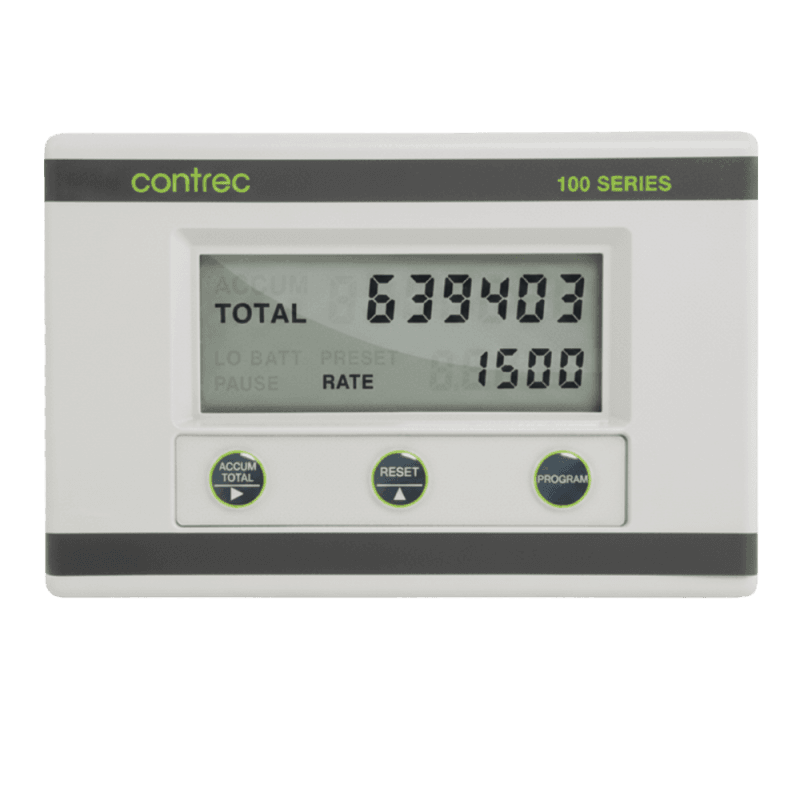

Contrec 103D Input Flow Totalizer

SKU: Contrec 103D Categories: , ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Read more

Input Signal: Frequency
Accuracy: +/-0.05%
Weatherproof Rating: IP67
Power Source: 9-28VDC
Alarm (Open Collector): High & Low
Linear Pulse Output: Yes
Mounting Type: Panel Mount

Read more

Input Signal: Frequency
Accuracy: +/-0.05%
Weatherproof Rating: IP67
Power Source: 9-28VDC
Alarm (Open Collector): High & Low
Linear Pulse Output: Yes
Mounting Type: Wall Mount

Introducing the Contrec 103D Flow Rate Totalizer: This innovative device seamlessly integrates with turbine, positive displacement, and paddlewheel flowmeters, catering to a wide array of applications including irrigation systems, pipelines, and mechanical register replacements. What sets it apart is its unique ability to operate without external power.

DC Powered Efficiency: The 103D operates efficiently on a 9-28 Volts DC supply, consuming minimal power (no more than 4mA). This feature enables it to be powered by AC mains adapters, eliminating the hassle of running mains voltages in the field. Additionally, the inclusion of lithium batteries ensures totalizer and programming retention, providing uninterrupted performance even during DC power supply interruptions.

Intrinsically Safe Option: Safety is paramount, especially in hazardous areas. For such installations, a certified intrinsically safe version, like the Contrec 202D, is available to meet your safety requirements.

Rugged and Waterproof: Built to withstand the toughest environments, the 103D Flow Rate Totalizer is encased in an IP67 (NEMA 4X) polycarbonate enclosure. This ensures exceptional durability and complete watertightness, guaranteeing reliable performance even in harsh conditions.

Easy Installation: Say goodbye to complicated setups. The totalizer comes equipped with a standard wall mounting bracket for hassle-free installation. For added convenience, optional accessories such as a 2″ panel and pipe mounting bracket are available, offering flexibility to meet your specific installation needs.

Experience seamless integration and reliable performance with the Contrec 103D Flow Rate Totalizer. Explore its advanced features and robust design today!

  • Displays Rate, Total and Accumulated Total
  • Loop DC Powered
  • Watertight to IP67 (NEMA 4X)
  • Wall or Pipe, Panel mounting
  • Fully programmable
  • 4-20mA output
  • High and Low Flow Rate Alarms
  • CE compliant
  • Pulse Output

Data Sheet: Contrec 103D Data Sheet
Instruction Manual:Contrec 103D Instruction Manual
