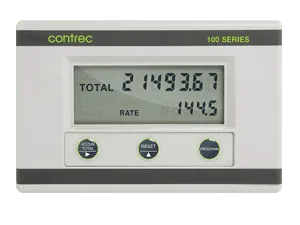

Contrec 102A Flow Rate Totalizer

SKU: Contrec 102A Categories: , ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Read more

Input Signal: Analogue
Accuracy: +/-0.05%
Weatherproof Rating: IP67
Power Source: mA Loop-Powered
Alarm (Open Collector): High & Low
Linear Pulse Output: Yes
Mounting Type: Panel Mount

Read more

Input Signal: Analogue
Accuracy: +/-0.05%
Weatherproof Rating: IP67
Power Source: mA Loop-Powered
Alarm (Open Collector): High & Low
Linear Pulse Output: Yes
Mounting Type: Wall Mount

Read more

Input Signal: Analogue
Accuracy: +/-0.05%
Weatherproof Rating: IP67
Power Source: mA Loop-Powered
Alarm (Open Collector): High & Low
Linear Pulse Output: Yes
Mounting Type: Pipe Mount Adapter

Availability: 1 in stock

  • Contrec 102 Flow Rate Totalizer is an accurate process instrument for field mounting applications.
  • The display for totalizer is up to seven-digit 10″ high LCD screen. However, it is only up to five digits with 0.33″ high for rate display.
  • Basically, Contrec 102A is powered entirely from the 4-20mA current loop.
  • These flowmeters including Differential Pressure Devices, Magnetic Flow Meters, or Vortex Flow Meters.
  • Furthermore, Contrec 102 flow rate totalizer has a digital filter that will average out the fluctuations and enable the rate to read in four-digit accuracy.
  • The Flow Rate Totalizer is fully programmable with a 10 point linearization curve to improve accuracy, and frequency cut off and conversion factors (i.e., rate in Litres – totalize in Tons).
  • Besides, a non-volatile memory store all set up parameters and totals.
  • Contrec 102A Flow Rate Totalizer allows the user to program Rate of Flow, Resettable Total, and Accumulated Total in engineering units.
  • High and low alarms are standard via optically state solid relay outputs.
  • Alternatively, the user can program the high alarm output.
  • Consequently, it allows the unit to provide a scaled pulse output proportional to the total.
  • The Contrec 102A Flow Rate Totalizer build with a rugged enclosure, which is IP67 (NEMA 4X) polycarbonate.
  • Hence, the enclosure is completely watertight.
  • The Flow Rate Totalizer comes with a standard wall mounting bracket.
  • Meanwhile, a 2″ panel and pipe mounting bracket are available as an option.
  • A non-volatile memory store all set-up parameters and total in the event of power failure.

Product Highlights

  • Linear or Square Root Inputs
  • Pulse Output
  • High and Low Rate Alarm
  • Fully Programmable Parameters
  • Display Rate, Total, and Accumulated Total
  • 4 – 20mA Loop Powered
  • Pipe, Wall or Panel Mounting
  • IP67 Watertight (NEMA 4X)
  • CE Compliant

Data Sheet: Contrec 102A Data Sheet
Instruction Manual:Contrec 102A Instruction Manual
