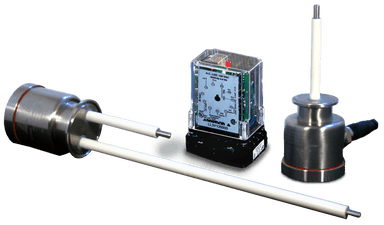

Anderson-Negele LB/LL Conductive Point Level Sensors and Modules

Part Number: LB/LL Category:

Email Us: sales@celectric.com.my
WhatsApp Us: +60165519084

Anderson Negele LB Point Level probe are designed to provide long-term reliability in applications where they are continuously exposed to wide temperature swings and repeated CIP cycles. The LB utilizes a new process developed to seal Teflon® insulation to stainless steel probes providing a smooth, thick, permanent coating that’s impervious to conditions encountered in sanitary processing and CIP applications. To simplify installation, the LB incorporates an elastomer between the Teflon® and the probe that allows any probe to be shortened by up to six inches in the field. The LL series switching modules are connected to the probes via a water-tight Quick Disconnect.

The LB also features a second proprietary, elastomeric compression seal at the top of each probe to ensure a sanitary seal is maintained at the probe to fitting junction. No threads exist within or near the product contact zone. Finally, the LB integrates a stainless steel wiring head that simplifies field wiring and retrofits to existing electronic controls. The head and fitting assembly can support up to 4 individual probes, plus a separate tank reference connection. The housing includes a pre-wired and sealed quick disconnect receptacle and can be specified with a molded cordset. The quick disconnect even meets NEMA 4X requirements in the disconnected position.

  • Long-Term sterility and cleanability
  • All new patent-pending compressed elastomeric seal between the probe and Teflon® coating
  • Proprietary elastomeric compression seal at the probe-to-fitting junction
  • Integrated stainless steel head makes retrofits simple
  • Water-tight quick-disconnect includes pre-wired tank ground reference
  • Up to four probes per fitting for multiple level applications
  • Rated for Process temperatures from 30°F (-1°C) to 200°F (94°C).

Datasheet: Anderson-Negele LB/LL Product Information

Manual: sku LB Conductivity Based Point Level Probe
