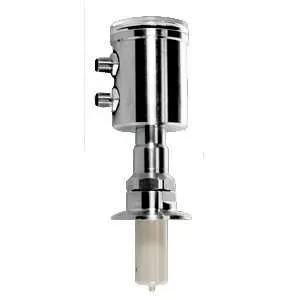

Anderson-Negele ILM-4 Inductive Conductivity Sensor

SKU: ILM-4 Categories: ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

ILM-4: The new generation of conductivity sensors

Anderson-Negele’s ILM-4 inductive conductivity sensor-transmitter offers an all-in-one design that makes integration and commissioning a fast and simple task. Built with flexibility in mind, the ILM-4 can offer multiple outputs freely configurable to multiple conductivity measurements at independent ranges or a combination of conductivity and temperature. Unlike other inductive sensors, the ILM-4 has a fast-reacting integral PT1000 sensor that can be used to monitor process temperature eliminating the need for a second temperature sensing device. Available in multiple wiring configurations, the ILM-4 configurable with single cable operation for simple conductivity applications or dual cable operation to utilize all available output and input capabilities. Standard with all models is an operational range up to 999 mS/cm and temperature compensation over a range of 0° and 150°C.

Measurement of conductivity of liquid media for

  • Controlling of CIP processes (e. g. phase separation detergents/water)
  • Concentration measurement (e.g. Alkali and acid concentration in remaking)
  • Monitoring of product quality & quality control

The new conductivity meter ILM-4 is compatible with the predecessor models ILM-2 and ILM-3.

  • CIP/SIP cleaning up to 150°C/maximum 60 minutes
  • Maintenance-free, inductive measurement
  • In contrast to contacting measurement methods, there are no problems with electrode deterioration or polarization.
  • Accurate measurement through compensation of temperature influences.
  • High reproducibility of ≤ 1% of the measurement value.
  • Analogue outputs for conductivity and temperature are a standard feature.
  • Analogue outputs for conductivity, temperature or concentration are freely adjustable.
  • Rapid temperature response time T90 15…60 s
  • Installation in tube diameters from DN 40

Datasheet: Anderson-Negele_ILM-4-Series-datasheet
Instruction Manual: Manual for Sensor produced before April 2018
Instruction Manual: Anderson-Negele_Manual_ILM-4_30012_3.4_en_eu
Quick Start: Quick Start for Sensor
