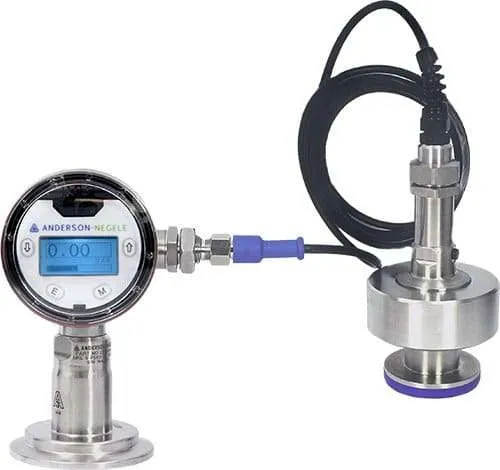

Anderson-Negele D3 Differential Pressure & Level Transmitter

Request a Quote
close-link

Part Number: D3 Categories: , ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • The Anderson-Negele D3 Differential Pressure and Level Transmitter is the most complete electronic differential transmitter with best-in-class performance and dual mA output. It uses the proven state-of-the-art temperature compensation technology of L3 and significantly reduces the effects of process and ambient temperature changes. The diff mA output can be scaled to volumetric values like gallons and lbs. and the second mA output can be used to monitor the top (head) pressure or the bottom (total system) pressure.

    While the sensor comes ready for installation right out-of-the-box, the simple graphical interface makes field setup and programming very easy. The D3 transmitter display can be direct mounted to either of the two sensors or can be mounted remotely for easy access.

    The new D3 is your go-to transmitter for any level applications where pressure and/or vacuum conditions exist.

    • Intuitive user interface makes set-up and configuration easy
    • Electronic Differential provides 2 analogue outputs (differential pressure and top or bottom pressure)
    • State of the art temperature compensation minimizes error in dynamic temperature applications
    • Fully electronic differential allows field replacement of components and repairability.
    • Integrated tank tables allow volume and mass output when tank and product information are input
    • Available in relative (vacuum and pressure)
    • Patented dual o-ring seals provide IP69K ingress protection
    • Dual loop output with Hart 7.0 communication and graphical LCD display

    Datasheet: Anderson-Negele D3 Product Information

    Manual: Instruction Manual

    Download: Startup Guide
