Vögtlin Instruments GSM Red-y Smart Mass Flow Meter

Last Updated: 26/05/2020
Vogtlin Logo

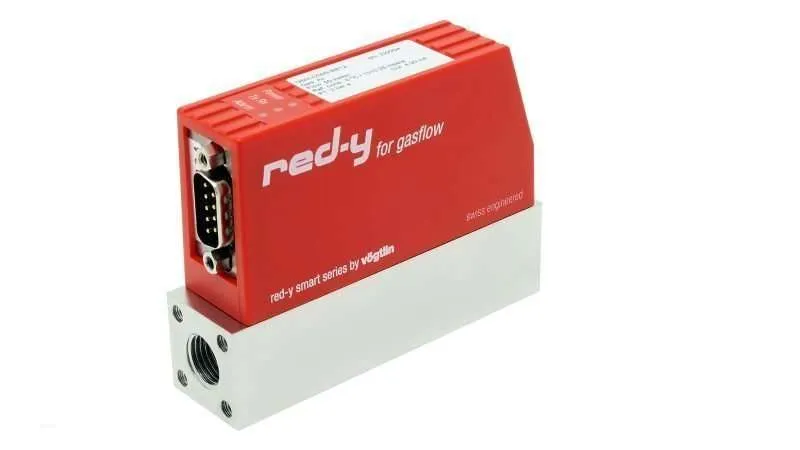

Vögtlin Instruments GSM-C5SS-BN00

$1,519

Usually ships in 4 to 6 weeks

Part Number: GSM-C5SS-BN00 Categories: , , Tags: ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Model: GSM-C5SS-BN00
    Medium: Air/air
    Measuring range: 1.0-50
    Measuring unit: ln/min
    Accuracy : Standard: ±1% full scale
    Temperature: 20 °C
    Pressure inlet: 2 bar a
    Connection: G1/4″ Inside thread
    Body material: Stainless steel
    Seals: FKM
    Power supply: +24 Vdc
    Output : RS485 + 4-20mA
    Calibration protocol: with

    Ref. Pressure : 1013 [mBar]
    Ref. Temperature : 0 [°C]

    • Vögtlin Red-y Smart with high-precision MEMS technology (CMOS Sensors) also it set new standards for mass flow meter concerning response characteristics and measuring accuracy.
    • With using Thermal Mass Flow Measurements principle Vogtlin Red-y Smart Series hence is insensitive to pressure and temperature changes. Because of all device with real gas calibration thus this ensures high accuracy and reproducibility. The calibration is traceable to the METAS standard (Federal office of Metrology, Switzerland)
    • Vogtlin “Get Red-y” software comes free with Red-y Smart Series for efficient device management via any PC.
    • While Vogtlin “Get Red-y” Software available to view flow rate & temperature, change set points, select measured gas also other not mentioned.
    • Red-y Smart is available as an option with the built-in display to view the flow rate directly.
    • Up to 10 different gases or gas mixtures available under one Red-y Smart for the multi-gas option.
    • With the latest MEMS technology, the mass flow meters and controllers have both digital and analog interface as standard. Profibus interface is available as an option.

    Data Sheet: Vogtlin Red-y Smart Datasheet

    Quick Manual: Vogtlin Red-y Smart Quick Manual

    Manual: Vogtlin Red-y Smart Operating Manual
