Brands:Setra

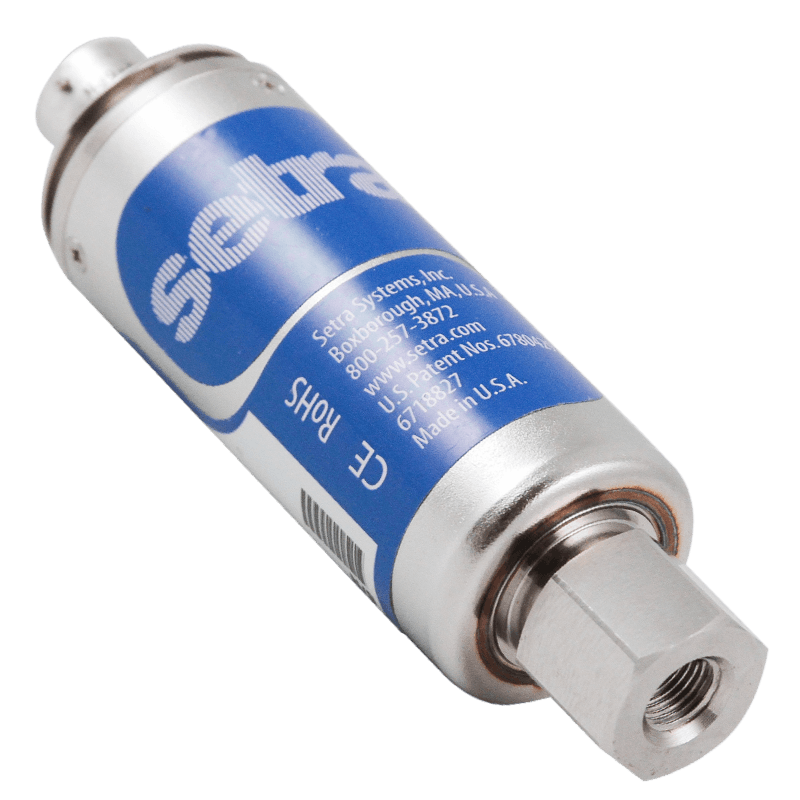

Setra ASM High Accuracy Pressure Transducer

Setra ASM Features

  • High Accuracy: ±0.05% FS
  • End Point Method Linearity
  • High Overpressure Capability: >10X Range
  • Low Thermal Error
  • Excellent Stability: under 0.15% FS/YR
  • Calibrate: Using SecureCal™ Calibration Key
  • Unidirectional & Bidirectional skus Available

Applications

  • Engine Test Stands
  • Particle Test & Analysis
  • Industrial (High Accuracy)
  • Manifold Pressure
  • Refrigeration Testing

The Setra ASM model is the most accurate gauge for gauge, absolute, composite and vacuum pressure measurement in the AccuSense™ product line. It is calibrated using the “endpoint method” with an accuracy of ±0.05% FS and linearity superior to similar products calibrated using the “best fit straight line method”. The ASM model uses the SecureCal™ calibration key to prevent calibration tampering, thereby avoiding false adjustments and authorizing the user to adjust the calibration factor for accurate sensor calibration. The product is specially designed to provide greater resistance to overpressure and offers a wide range of pressure and electrical interfaces for a wide range of applications.

Applications

  • Engine test bench
  • Particle testing and analysis
  • High precision industrial application
  • Intake pipe pressure measurement
  • Refrigeration test

Characteristics

  • High precision: ±0.05% FS
  • Endpoint method calibration, high linearity
  • Low differential pressure range
  • High resistance to overpressure: overpressure conditions up to 10 times
  • Low-temperature drift
  • Good stability: <0.15% FS/year
  • Calibration using the SecureCalTM calibration button
  • Withstand high pipeline pressure
  • Provide one-way and two-way differential pressure measurement models

Data Sheet:Setra_sku_ASM_Data_Sheet
Instruction Manual:Setra_sku_ASM_Operating_Instructions
