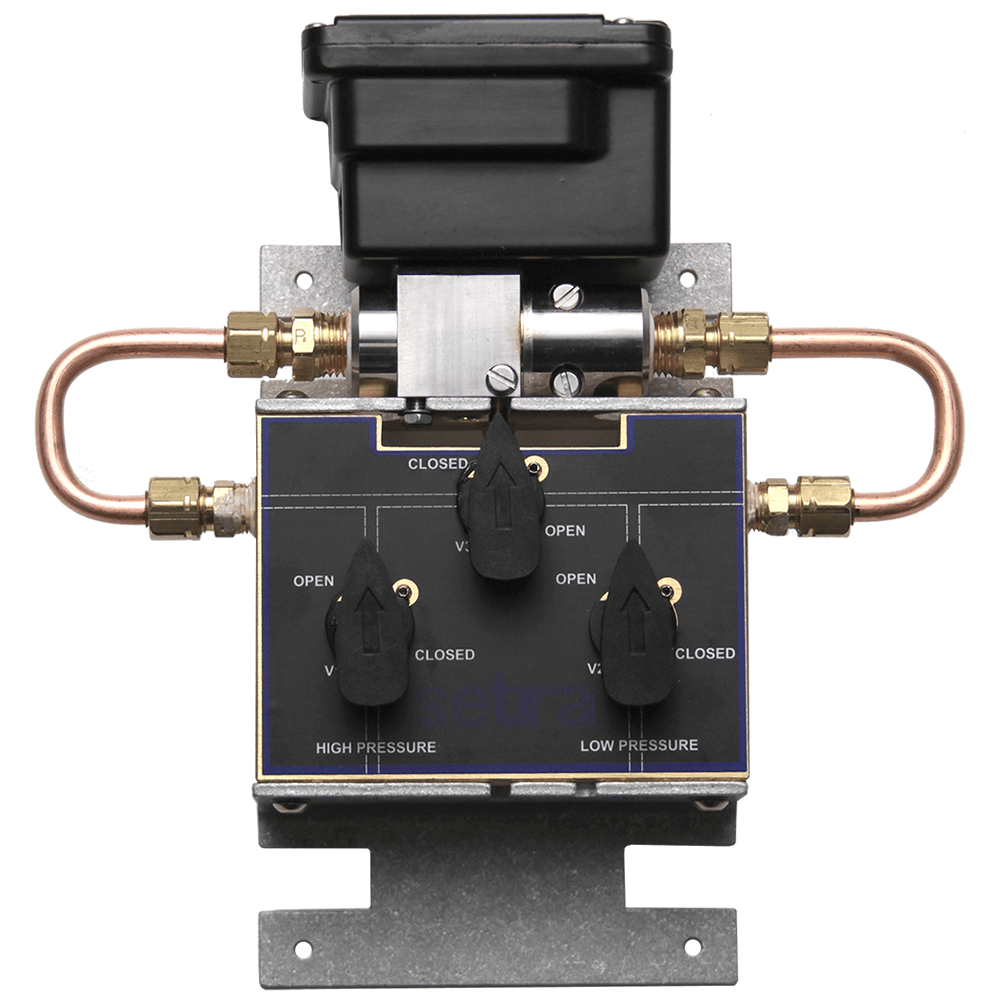

Setra 230 Wet-to-Wet Differential Pressure Transducer

Request a Quote
close-link

Part Number: Setra 230 Categories: , Tag:
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Setra 230 Features

    • ±0.25% FS Accuracy
    • No Liquid Fill Diaphragm
    • NEMA 4 Rated Housing
    • Available with 3-Valve or 5-Valve Manifold Assembly Option
    • Low Line Pressure Effect
    • Fast Response Time
    • Gas and Liquid Compatible
    • Meets CE Conformance Standards

    The Setra 230 sensor is Setra’s highest precision solution for monitoring differential pressure in wet-wet applications. Its single diaphragm design provides true wet-to-wet differential pressure measurement with excellent ±0.25% FS accuracy while competing products use two single-point pressure sensors to calculate differential pressure. The stainless steel capacitive sensor provides high precision, linear analogue output proportional to pressure over a wide temperature range. The Setra 230 sensor offers an optional 3-valve or 5-valve machined brass manifold for easy installation and maintenance.

    Single diaphragm sensor is not affected by line pressure

    Unlike competing products, the Setra 230 pressure sensor is a true wet-wet differential pressure sensor with a single diaphragm construction. The differential pressure range of a single diaphragm is not affected by the line pressure. In contrast, the dual differential pressure sensor requires each sensor to measure the gauge pressure separately and compare the output signals to determine the differential pressure.

    Improved sensor response time

    The Setra 230 is an all-stainless steel capacitive sensor that is 20 times faster than a liquid-filled sensor. Its electronic circuitry provides a high-precision, linear analogue output proportional to pressure over a wide temperature range.

    Save installation time and cost

    For time and project cost is the most critical application, the Setra 230 sensor offers an optional 3-valve or 5-valve machined brass manifold for easy installation and maintenance. The brass body does not have any internal pipe connections, eliminating the risk of internal leaks.

    Data Sheet: Setra_Model_230_Data_Sheet

    User Manual: Setra_Model_230_Operating_Instructions
