Setra 225 Ultra High Purity Pressure Transducer

Request a Quote
close-link

Part Number: Setra 225 Categories: , Tags: , , , ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Setra 225 Features

    • Superior Stability Avoids Downtime
    • EMI/RFI Immunity Prevents False Shutdown
    • Sturdy Design Allows Trouble-Free Installation
    • 316 L VIM/VAR stainless steel
    • Surface finish 7 Ra
    • VCR connector
    • 1×10-9 ATM.CC/sec level ammonia leakage test
    • Rugged, trouble-free installation
    • 4-20mA output type is non-flammable and suitable for potentially hazardous areas
    • Meet CE and RoHS standard

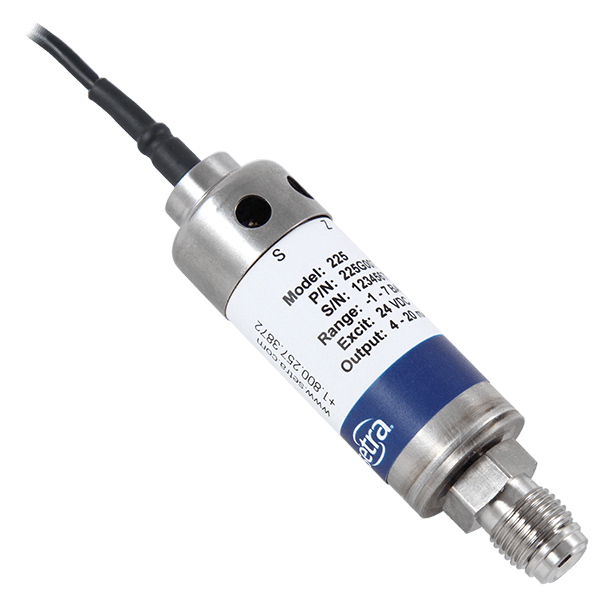

    The Setra 225 series of ultra-high purity pressure transmitters are specifically designed for ultra-high purity gas delivery systems in semiconductor processes and control applications requiring an ultra-clean operation, high throughput, and ultra-long-term stability.

    The 225 Series features a rotatable housing construction that allows the user to easily adjust the 12-turn potentiometer for zero and span fine-tuning. The standard rotary male/internal end face seal pressure interface meets the requirements of the semiconductor industry. In addition, the series also uses a variety of other interface types. GCT-225

    The series is available in 5 VDC, 10 VDC or 4-20 mA output types and can be electrically connected using a 6-foot multi-core cable and bayonet, D-Sub or M12x1 connectors.

    The 225 Series pressure transmitters feature Setra’s patented variable capacitance technology with VIM/ VAR 316L stainless steel diaphragm and insulated electrode plates. The insulated electrode plate and the sensor locally form a variable capacitor. As the gas pressure increases, the diaphragm becomes slightly rounded, reducing the capacitance. The sensor will detect the change in capacitance and convert it to a high precision linear DC signal. Setra’s unique custom integrated circuits are fabricated using a patented charge-balance principle that is virtually immune to EMI/RFI interference.

    After the manufacturing and assembly, Setra Ultra High Purity Pressure Transmitter is also subject to deionized water rinsing, high purity hot nitrogen purging, drying, double layer packaging, nitrogen filling, and sealing, and finally shipped.

    Note: Setra’s quality standards are based on ANSI-Z540. The product is calibrated with NIST traceability, US patent number.

    • Low leakage rate
    • VCR connector
    • A small chamber that is easy to purge
    • 200PSI/250PSI/3000PSI

    Characteristic

    • 316 L VIM/VAR stainless steel
    • Surface finish 7 Ra
    • VCR connector
    • 1×10-9 ATM.CC/sec level ammonia leakage test
    • Rugged, trouble-free installation
    • 4-20mA output type is non-flammable and suitable for potentially hazardous areas
    • Meets CE and RoHS standards

    Data Sheet: Setra_Model_225_Data_Sheet

    User Manual: Setra_Model_225_Operating_Instructions
