Precision Digital PD6830 ProtEX-RTP Flow Rate Totalizer

Last Updates: 30/08/2020

Precision Digital PD6830-CTB-0


Usually ships in 1 to 2 weeks

Part Number:  PD6830-CTB-0  Categories: , Tag:
  • Email Us:
  • WhatsApp Us: +60165519084
  • Model: PD6830-CTB-0
    Product Type: Flow Rate / Totalizer
    Input: Pulse
    Output Options: (2) Open Collectors, (1) 4-20 mA Output
    Power: Output Loop-Powered
    Approvals: ATEX (FP), CE, CSA (XP), FM (XP), IEC (FP)
    Display Category: LCD, Dual Line, Sunlight Readable
    Display: Dual Line, 0.7″ & 0.4″ High, 5 & 7 Digits, Decimal, LCD
    Serial Comms: None
    Warranty: 3 years
    Backlight: Output Loop-Powered
    Product Series: ProtEX
    Product Family: PD6830
    Product category: Explosion-Proof, Field Mounted Indicators
    Product Application: Flow Rate Totalizer, Speed, Hazardous Area

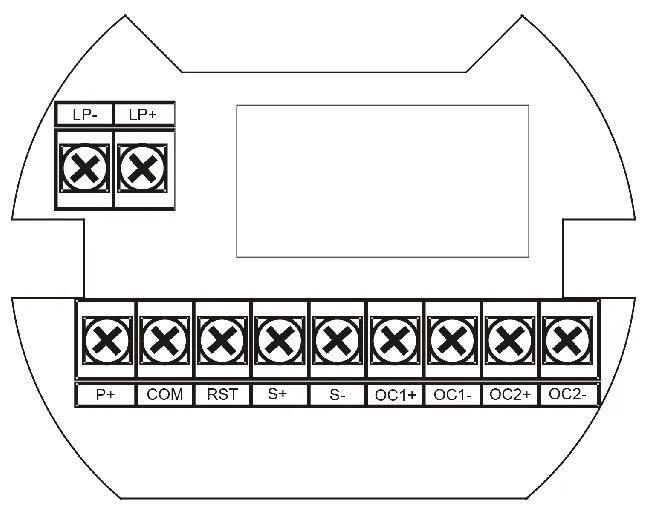

    Wiring Diagram:

    The ProtEX-RTP PD6830 is an explosion-proof flow rate/totalizer that can display flow rate and total from a pulse output flowmeter. Its display has a five digit upper line for rate, a seven alpha-numeric character lower line for total, and comes standard with a backlight. Like all ProtEX products, the PD6830 carries FM, CSA, ATEX, and IECEx approvals for use in hazardous areas. It can be powered from an included battery or a 24 VDC external power supply. Some features that really make the PD6830 flow rate/totalizer stand out are its automatic unit conversions from flowmeter k-factor units, ability to log up to 1024 data points, and SafeTouch® through-glass buttons. These buttons allow the PD6830 to be programmed and operated through the glass, thus eliminating the need to remove the cover in a hazardous area.

    Data Sheet: LDS6830 Data Sheet
    Instruction Manual:  LIM6830_0 Instruction Manuals
